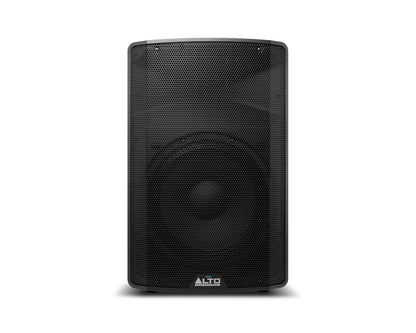

TX 312

System Type

2-way active ported loudspeaker

Drivers

Low-Frequency: 12.0” (305 mm) driver, 2.0” (51 mm) voice coil

High-Frequency: 1.0” (25 mm) titanium-diaphragm compression driver, 1.0” (25 mm) voice coil

Amplifier

700 watts (peak), 350 (continuous), Class D power

Horn Coverage

90º horizontal x 60º vertical (nominal)

Frequency Response

70 Hz – 20 kHz (-3 dB)

Crossover Frequency

 2.5 kHz

Max SPL

120 dB @ 1 m

Equalization

Contour switch with low- and high-frequency +3 dB boost

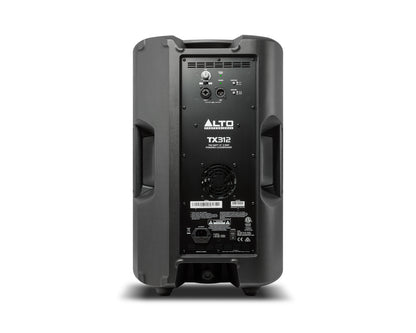

Connectors

(1) XLR/TRS 1/4” (6.35 mm) balanced input (Line/Mic)

(1) XLR output (Link)

(1) IEC power cable input

Controls

Power switch, volume control knob, contour switch, ground-lift switch

Indicators

(2) power LEDs (1 front panel, 1 rear panel), clip limiter LED

Power:

Connection: IEC

Voltage: 100–120 V~, or 220–240 V~; 50/60 Hz

Fuse: 100–120V T6.3AL AC250V or 220–240V T3.15AL AC250V

Consumption: 350 W

Protection:

Thermal, overload analog limiter/compressor

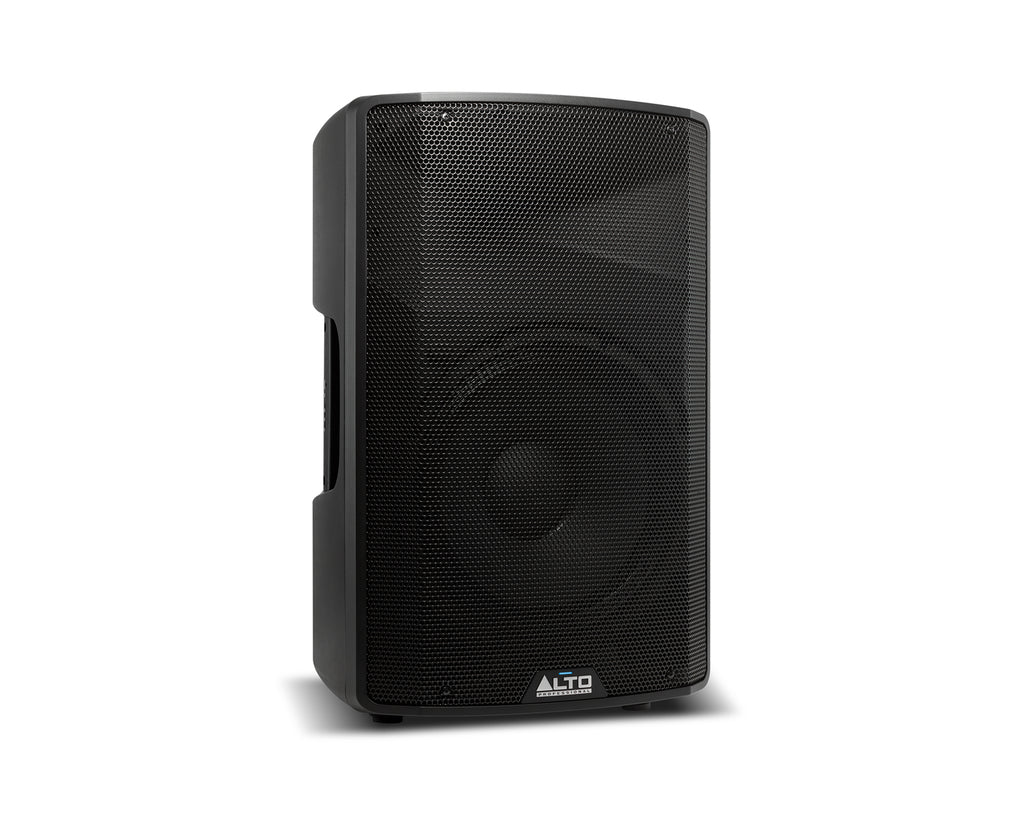

Enclosure:

Injection-molded polypropylene, multi-angle for main or monitor applications, metal grille, rubber feet, 2 handles (both sides)

Mounting/Installation:

Standard 36 mm pole socket, wedge monitor

Dimensions (height x width x depth)

23.7” x 15.0” x 13.5”

602 x 381 x 343 mm

Weight:

29.3 lb

13.3 kg
