TS

12S

Output Power

2500W peak@4Ω

Transducer Low:

12” (305mm) woofer; 3” (76.2 mm) high-temperature voice coil

Frequency Response

44 Hz– 95 Hz (-3 dB)

Frequency Range

38 Hz–110 Hz (-10 dB)

Crossover Frequency

 2 kHz

Max SPL

130 dB (@1m)

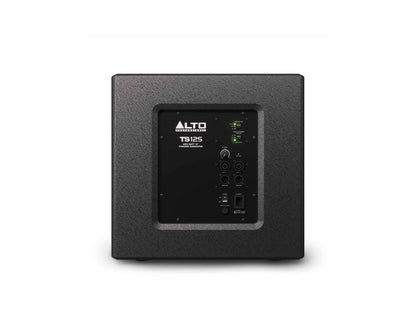

Connections

(2) XLR+1/4” (6.35 mm) inputs; (2) XLR outputs; (1) IEC power cable input

Controls

Volume control, signal/clip limiter with LED, speaker use button, proximity button, power switch with LED

Power:

IEC

Voltage: 100-120V, 50/60Hz; 220-240V, 50-60Hz

Consumption: 1600W

Fuse

100-120V, T15AL AC250V; 220-240V, T8AL AC250V

Protection:

Electronic clip, thermal and transducer overdrive protection

Enclosure:

Internally braced MDF cabinet; 36mm mounting pole socket on top panel

Mounting/Installation:

Standard 36 mm pole socket, flown application, suspended with integral M6 points, or in a wedge monitor position

Dimensions (height x width x depth)

17.9” x 18.1” x 19.9” / 454.7 x 459.7 x 505.5 mm

Weight:

57.1 lbs / 25.9 kg
