TS 415

Output Power

2500 W peak (1600 LF + 900 HF) 1250 W continuous RMS (800 LF + 450 HF)

Drivers

Low-Frequency:  15.0” driver, 2.5” (63 mm) high-temperature voice coil. 1 x 800 W RMS @ 2 Ω.

High-Frequency: 1.0” exit ceramic driver with 1.4” (35 mm) coil. 1 x 450 W @ 4 Ω.

Horn Coverage

90º horizontal x 60º vertical (nominal)

Frequency Response

44 Hz – 20 kHz (+/- 3 dB)

Frequency Range

33 Hz – 20 kHz (-10 dB)

Crossover Frequency

 2 kHz

Max SPL

 135 dB (peak), 132 dB (continuous) (dB-SPL @ 1 m)

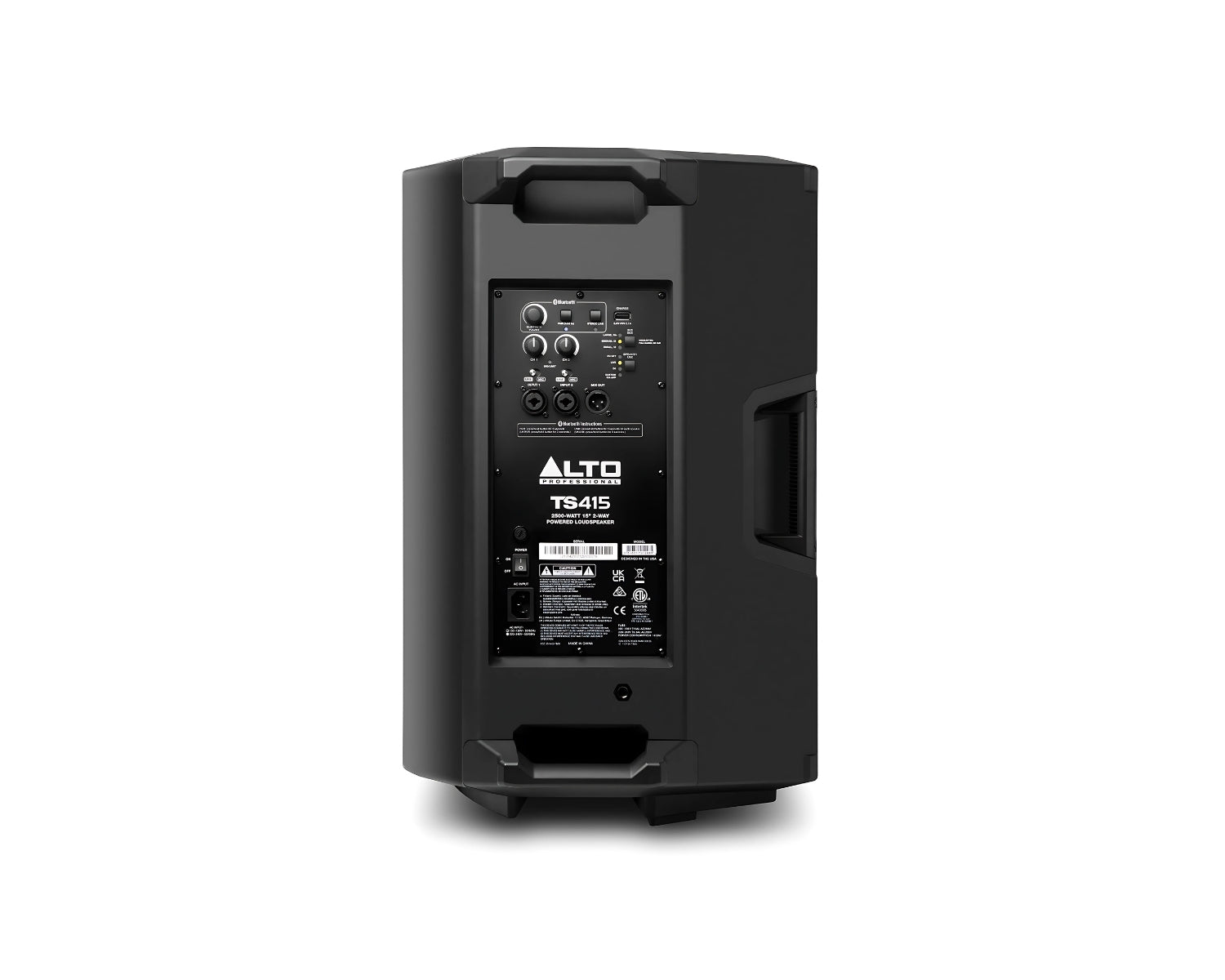

Connectors

 (2) XLR+1/4” (6.35 mm) TRS combo inputs (Balanced), (1) XLR output (Link), (1) IEC power cable input

Controls

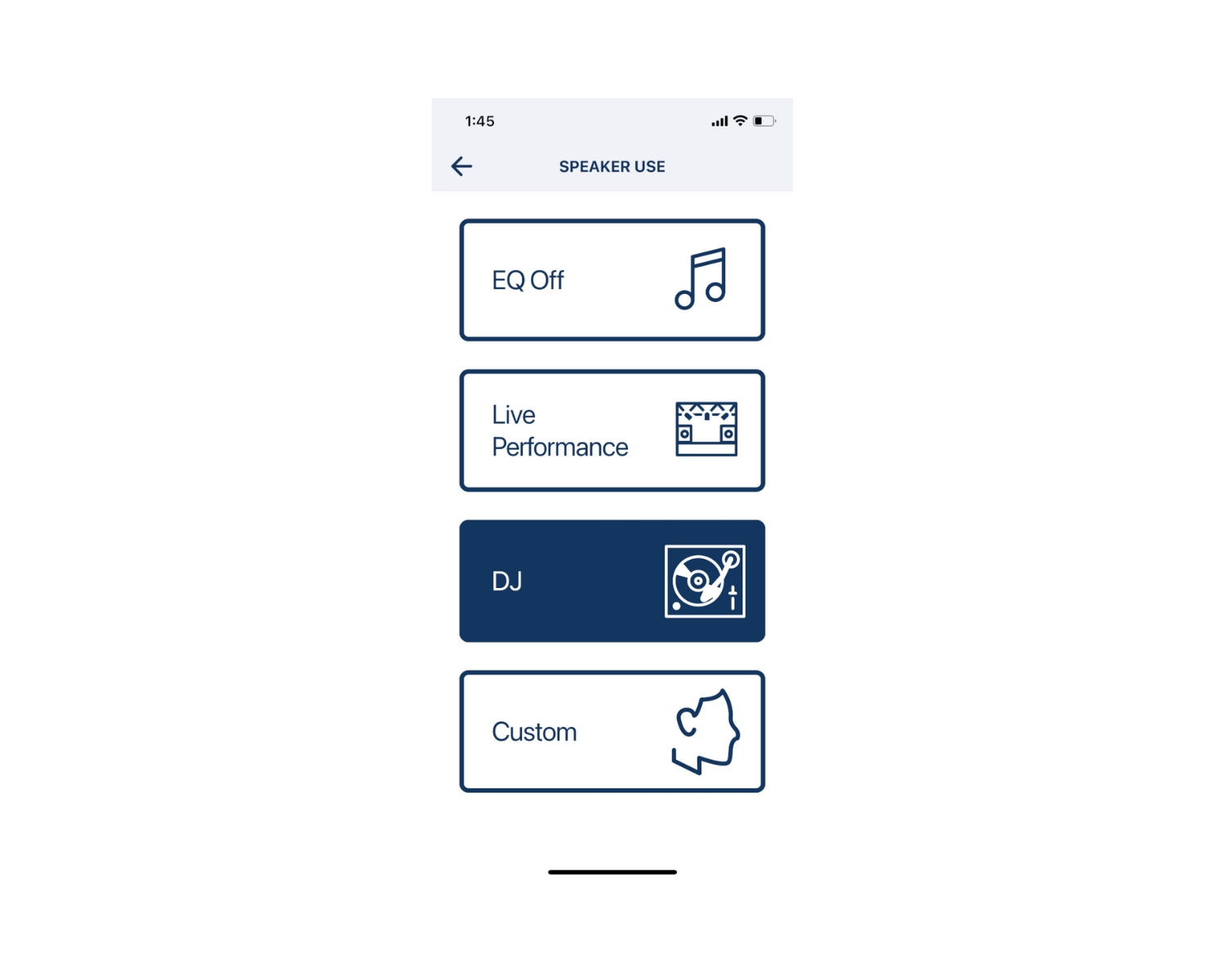

Power switch, (2) gain control knobs (1 per input), (2) Mic/Line switches, Bluetooth volume control encoder, Pairing button, Stereo Link button, Sub Size button, Speaker Use button

Input Impedance Line

10 KΩ balanced, 20 KΩ unbalanced, Mic: 1.2K

Line Gain/Volume Control Range

-∞ to 0 dB, +4 dBu nominal, +10 dBu for max output

Mic/Inst. Gain/Volume Control Range

  -∞ to +50 dB

USB Charging Port

5V 2.1A

Indicators

(1) Input Channel Signal/Limit/Clip LED (Green = Ch1/2 Signal) (Yellow = Ch1/2 Limiter) (Red = Ch1/2 Output Clipped), (1) Bluetooth LED (Blue), (1) Link LED (Orange), (4) DSP Presets LED (Green), (3) HPF LED (Green)

Power:

IEC

Voltage:  100-120V, 50/60Hz; 220-240V, 50-60Hz

Consumption: 1100W

Fuse

100-120V T15AL AC250V; 220-240V T6.3AL AC250V

Protection:

Electronic clip, thermal, and transducer overdrive protection

Enclosure:

Injected Molded Enclosure and Perforated Metal Grille

Mounting/Installation:

Standard 36 mm pole socket, flown application with integral M10 suspension points, or in a wedge monitor position

Operating Temperature

-10°C to 45°C (14°F to 113°F)

Dimensions (height x width x depth)

25.3” x 16.4” x 15.8”

643 x 417.5 x 402 mm

Weight:

38.0 lbs. / 17.2 kg
