TS 408

Output Power

2000 W peak (1300 LF + 700 HF), 1000 W continuous RMS (650 LF + 350 HF)

Drivers

Low-Frequency: 8.0” driver, 2.0” (50 mm) high-temperature voice coil. 1 x 650 W RMS @ 2 Ω.

High-Frequency: 1.0” exit ceramic driver with 1.4” (35 mm) coil. 1 x 350 W @ 4 Ω.

Amplifier

350 watts (peak), 175 watts (continuous), Class D power

Horn Coverage

90º horizontal x 60º vertical (nominal)

Frequency Response

62 Hz – 20 kHz (+/-3 dB)

Frequency Range

52 Hz – 20 kHz (-10 dB)

Crossover Frequency

 2 kHz

Max SPL

130 dB (peak), 127 dB (continuous) (dB-SPL @ 1 m)

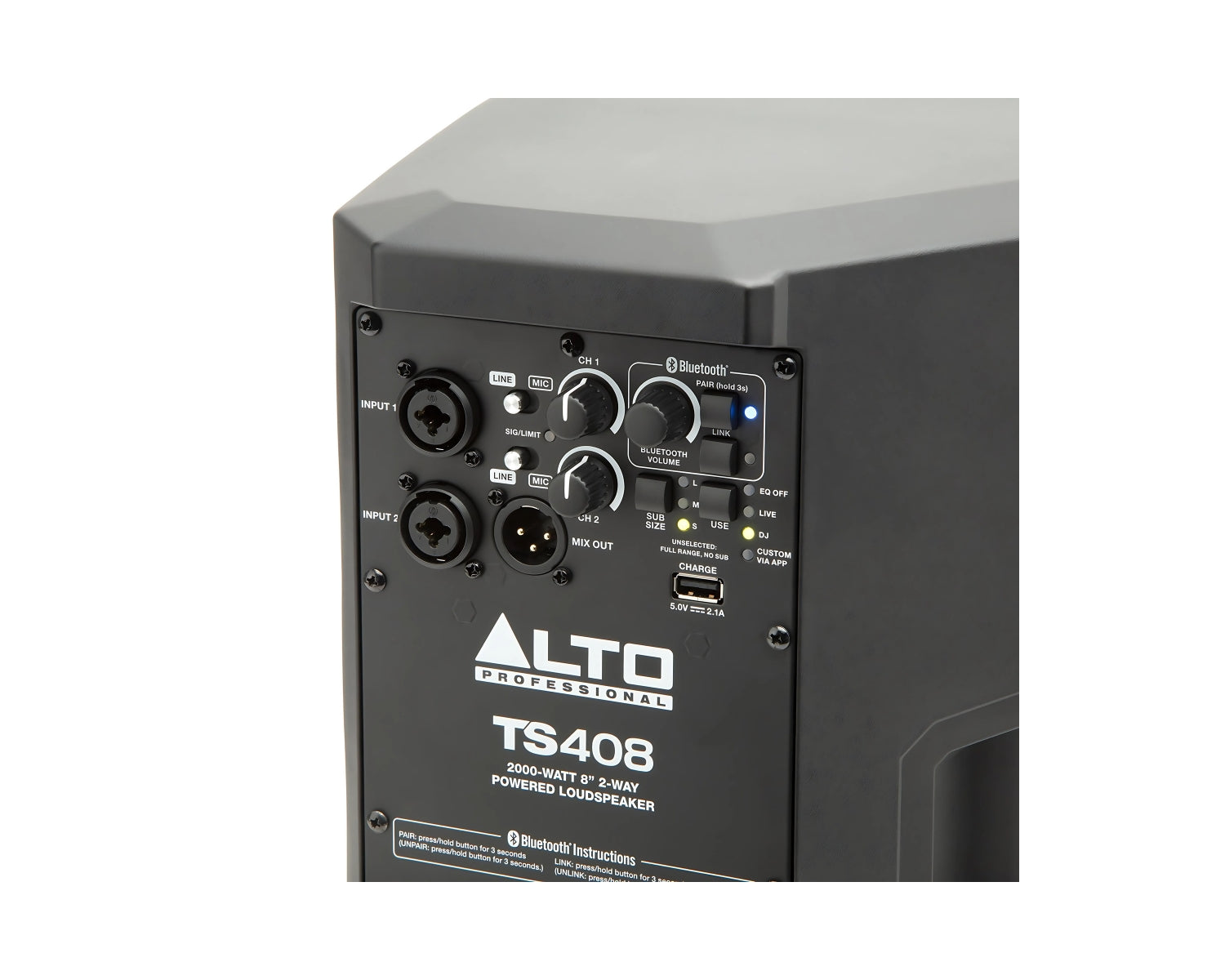

Connectors

(2) XLR+1/4” (6.35 mm) TRS combo inputs (Balanced), (1) XLR output (Link), (1) IEC power cable input

Controls

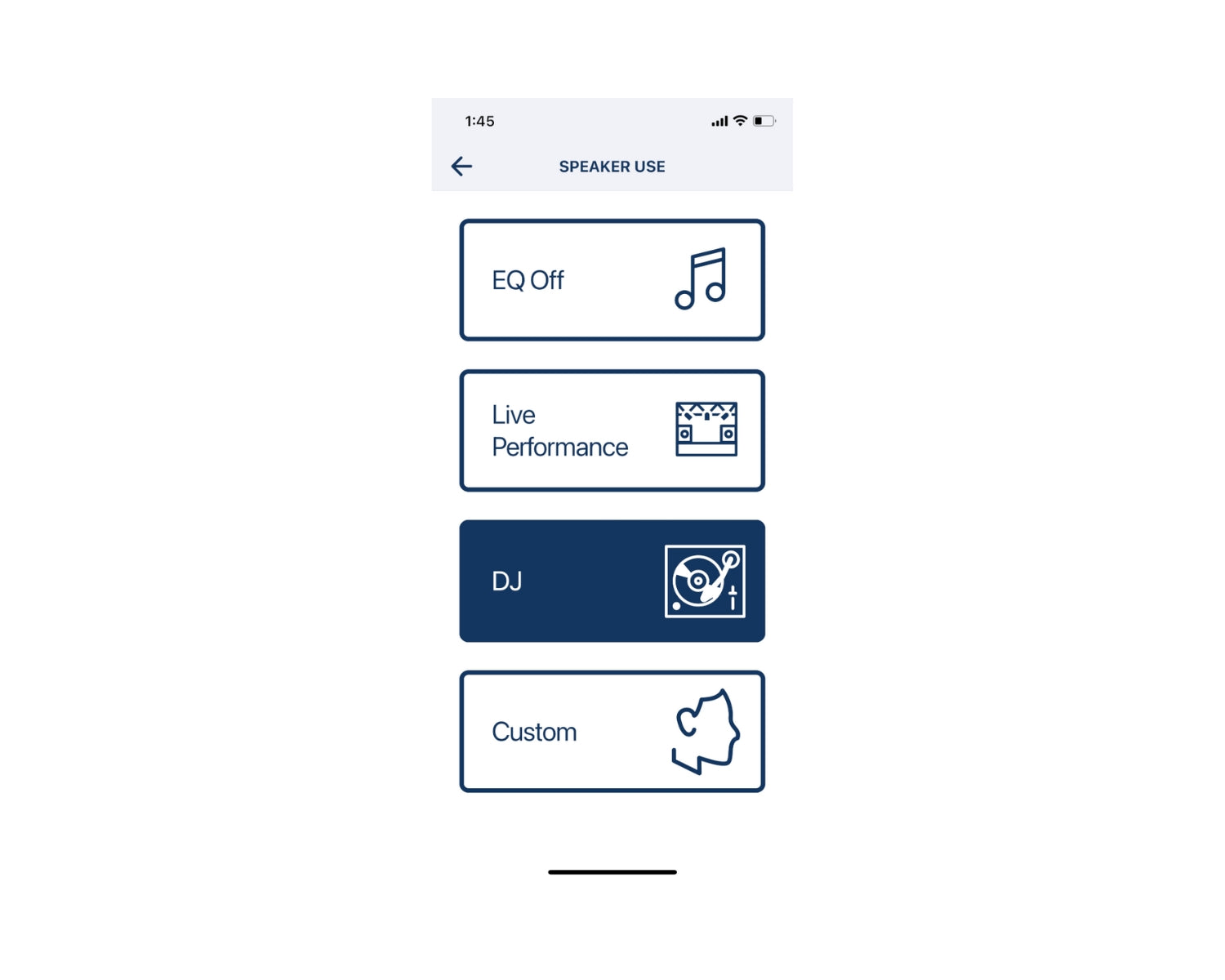

Power switch, (2) gain control knobs (1 per input), (2) Mic/Line switches, Bluetooth volume control encoder, Pairing button, Stereo Link button, Sub Size button, Speaker Use button

Input Impedance Line

10 KΩ balanced, 20 KΩ unbalanced, Mic: 1.2K

Line Gain/Volume Control Range

-∞ to 0 dB, +4 dBu nominal, +10 dBu for max output

Mic/Inst. Gain/Volume Control Range

 -∞ to +50 dB

USB Charging Port

5V 2.1A

Indicators

(1) Input Channel Signal/Limit/Clip LED (Green = Ch1/2 Signal) (Yellow = Ch1/2 Limiter) (Red = Ch1/2 Output Clipped), (1) Bluetooth LED (Blue), (1) Link LED (Orange), (4) DSP Presets LED (Green), (3) HPF LED (Green)

Power:

IEC

Voltage: 100-120V, 50/60Hz; 220-240V, 50-60Hz

Consumption: 900W

Fuse

100-120V T10AL AC250V; 220-240V T5AL AC250V

Protection:

Electronic clip, thermal, and transducer overdrive protection

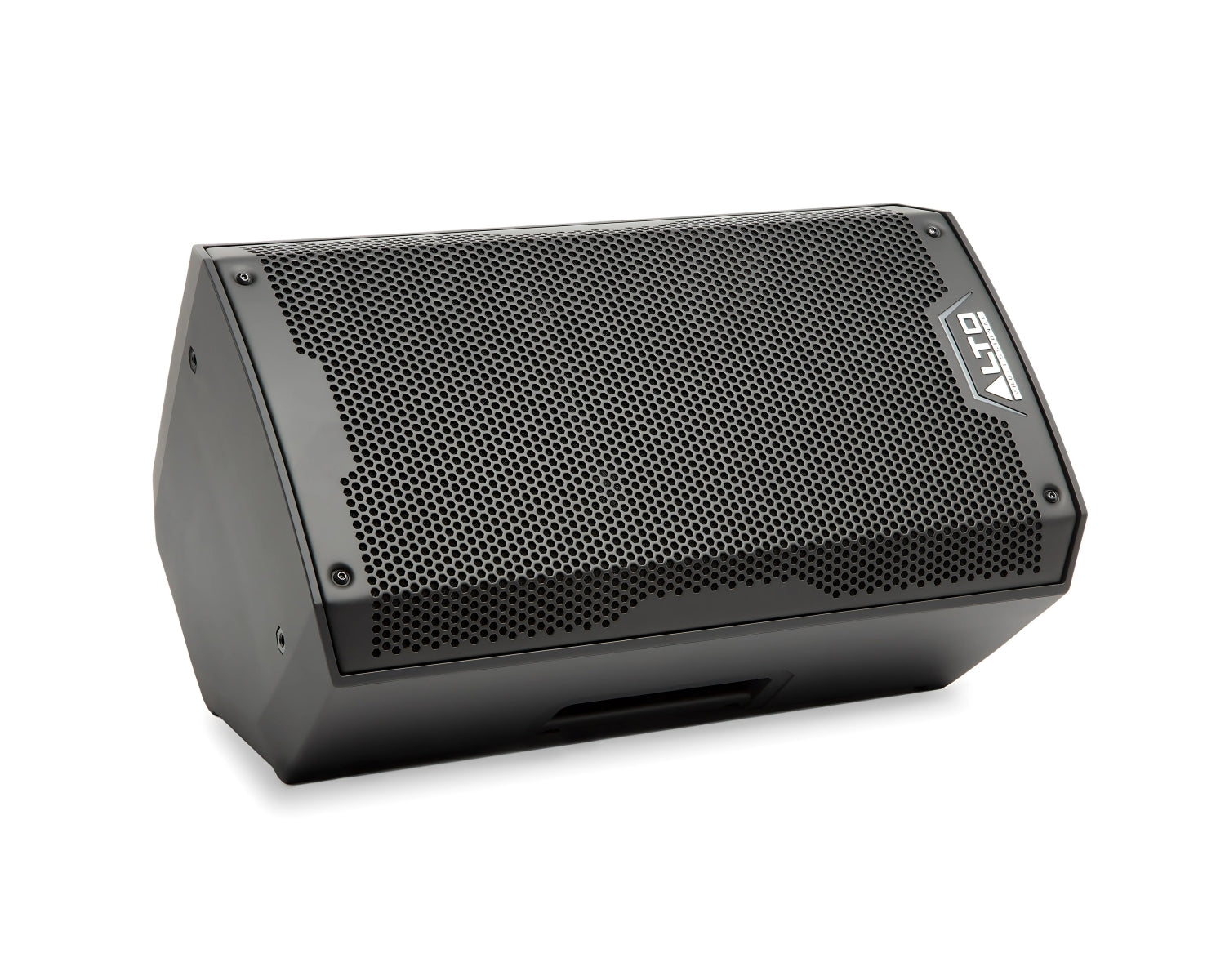

Enclosure:

Injected Molded Enclosure and Perforated Metal Grille

Mounting/Installation:

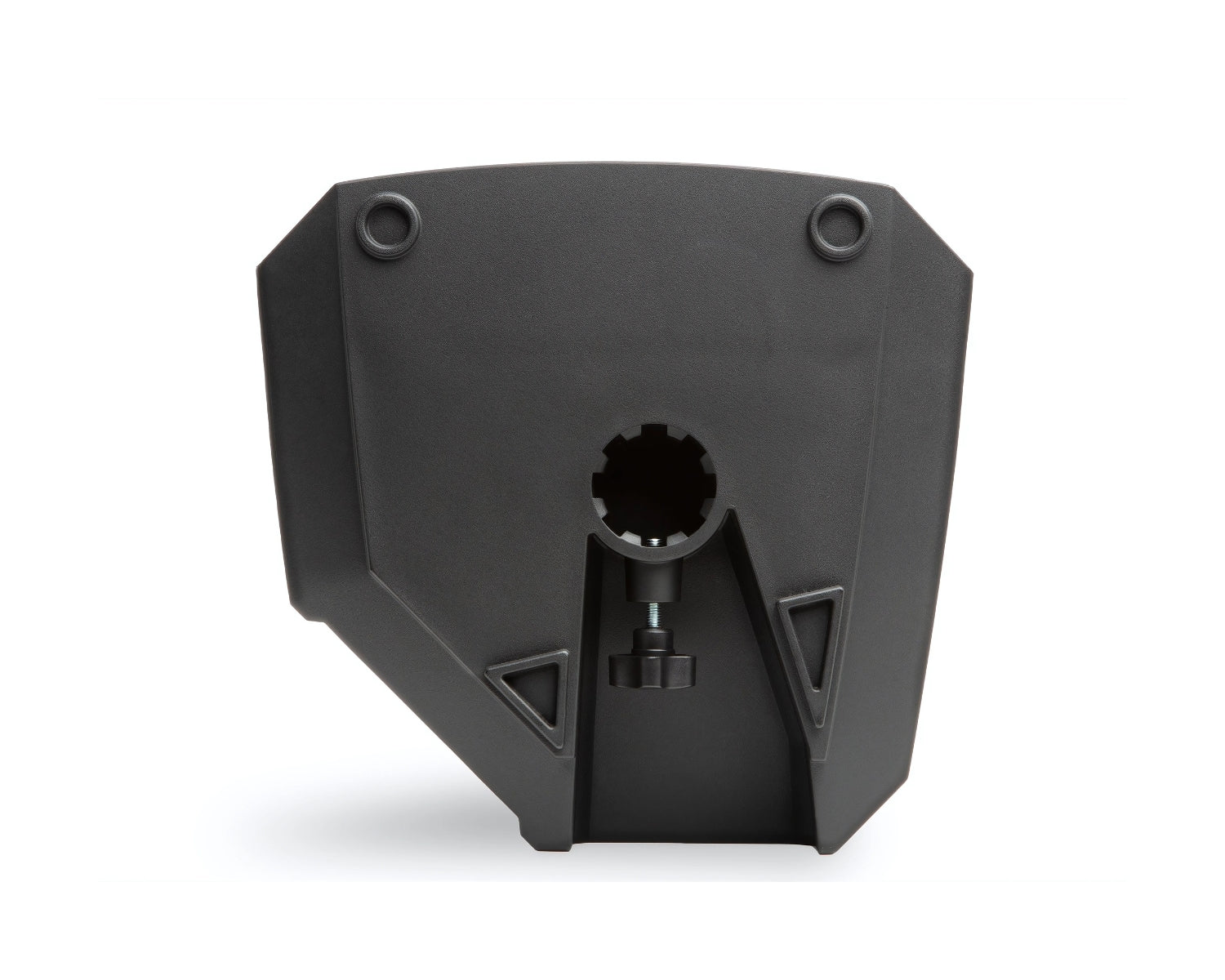

Standard 36 mm pole socket, flown application, suspended with integral M6 points, or in a wedge monitor position

Operating Temperature

-10°C to 45°C (14°F to 113°F)

Dimensions (height x width x depth)

 17.2” x .10.1” x 9.6

 436 x 256 x 245 mm

Weight:

20.7 lbs. / 9.4 kg
