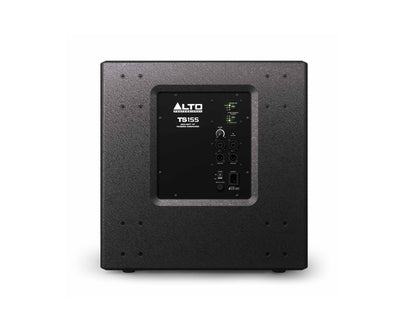

TS 15S

Output Power

2500W peak@4Ω

Transducer Low:

15” (381 mm) woofer; 3” (76.2 mm) high-temperature voice coil

Frequency Response

36 Hz–110 Hz (-3 dB)

Frequency Range

31 Hz–123 Hz (-10 dB)

Crossover Frequency

 2 kHz

Max SPL

132 dB (@1m)

Connections

(2) XLR+1/4” (6.35 mm) inputs; (2) XLR outputs; (1) IEC power cable input

Controls

Volume control, signal/clip limiter with LED, speaker use button, proximity button, power switch with LED

Power:

IEC

Voltage: 100-120V, 50/60Hz; 220-240V, 50-60Hz

Consumption: 1600W

Fuse

100-120V, T15AL AC250V; 220-240V, T8AL AC250V

Protection:

Electronic clip, thermal and transducer overdrive protection

Enclosure:

Internally braced MDF cabinet; 36mm mounting pole socket on top panel

Mounting/Installation:

Standard 36 mm pole socket, flown application, suspended with integral M6 points, or in a wedge monitor position

Dimensions (height x width x depth)

21.3” x 20.6” x 24.7” / 541 x 523 x 627 mm

Weight:

87.1 lbs / 39.51kg
