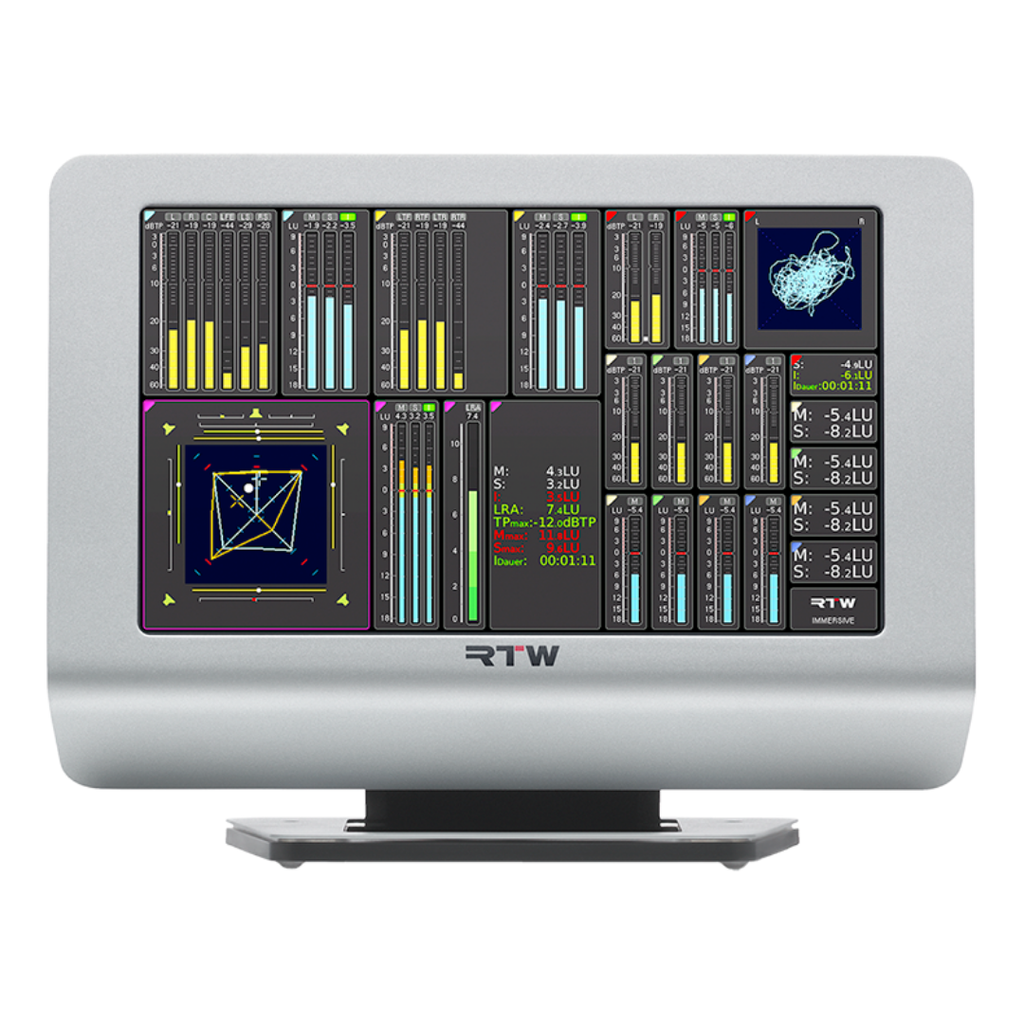

TouchMonitor TM9

Features:

• Easy and fast touch screen control with comfortable onscreen help

• Highly flexible screen layout options with scalable instrument

• Powerful DSP platform for parallel display of multiple instruments

• 16 channel audio interfacing including analog, AES3 and AES3id (depending on hardware version)

• Optional 3G-SDI interface for audio signals of 3G/HD/SD SDI data streams

• Models with Dante™ or Ravenna/AES67 and ST 2110 AoIP connectivity for up to 32 channels

• Fully scalable, modular software approach for flexible configuration and easy on-site upgrades

• Ethernet/LAN, USB, VGA and GPIO ports

• 9" touch screen 16 : 9 TFT

• Table-top unit, approx. 245 x 165.5 (185.5) x 46.5 (95) mm, W x H x D (with table-stand), incl. mains adapter

• Flush mount versions available (please contact our sales department)

• Standard Software (4-ch. PPM, TruePeak meter, correlator, global keyboard, gain reduction)

• Other software modules available as options
