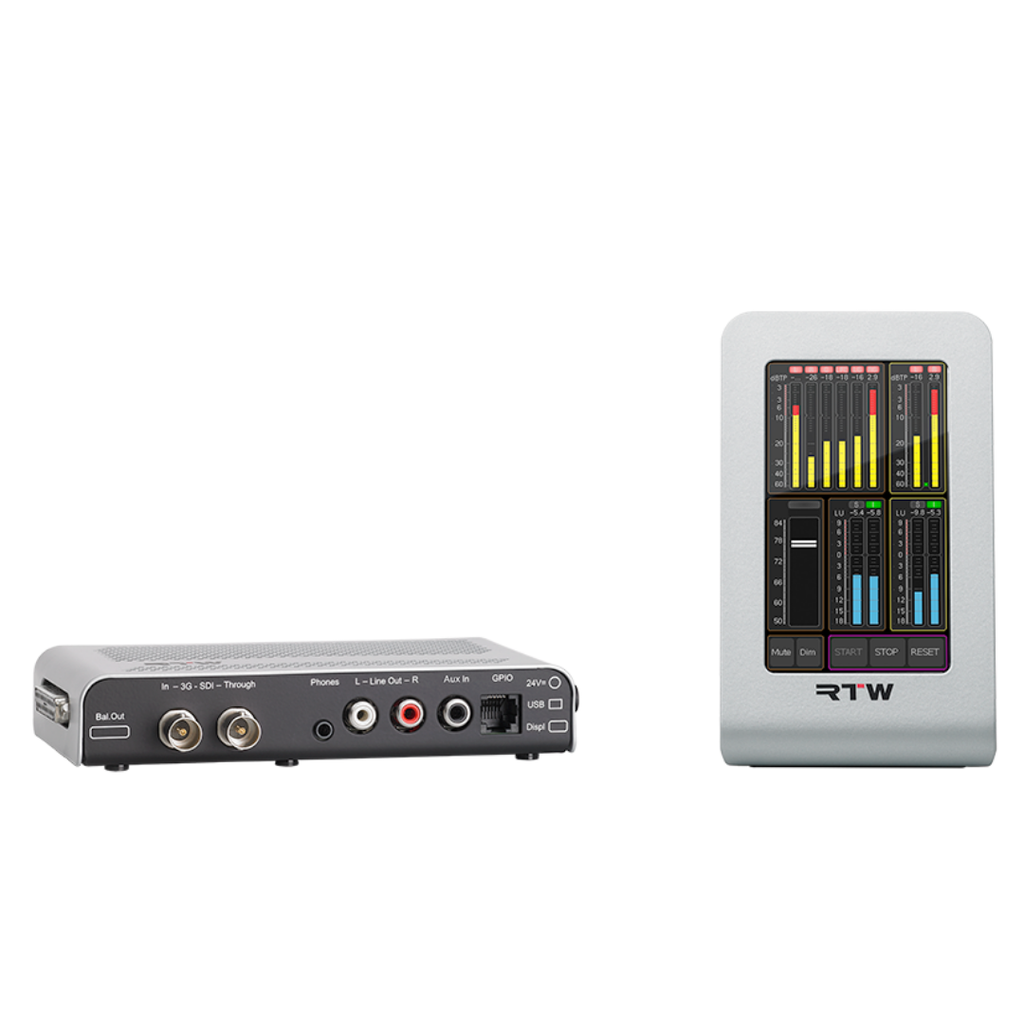

TM3-3G Smart

Features:

• 4.3“ capacitve touch screen for vertical or horizontal use (Dimensions: 82.5 x 138 x 50 mm, W x H x D)

• Flexible display layout with scalable instruments

• Separate 3G-SDI interface box with audio I/O, USB, GPIO, low voltage connector (Dimensions: 146 x 27 x 85 mm, W x H x D)

• Audio: 3G/HD/SD-SDI In/Through (BNC), max. 8 digital channels at a time

• USB 2.0 connector (Mini-B), GPIO connector (RJ-12)

• 2-channel Stereo up to 8-channel level and loudness display, 3G-SDI signals alternatively selectable

• 16-channel 3G-SDI deembedder with 8 x AES3 out

• Monitoring controller with onscreen level fader

• Analog Stereo Line Out and Stereo headphone out

• Moving Coil instruments

• Loudness: EBU R128, ITU-R BS.1770-4/1771-1, ATSC A/85, ARIB, OP-59, AGCOM, CALM Act, customer specific

• Single channel and summing loudness bargraphs

• Loudness Test Time Control

• Loudness range (LRA) with MagicLRA

• Loudness chart

• Timecode Reader

• PPM & True Peak

• SPL & Dialnorm

• Correlation

• Numerical display

• Comprehensive set of presets

• Personalization with Devicer DC1

• The Device Configurator software for Windows® and Mac OS
