TLM 107
Pairs well with
TLM 107
Product details
Description
Features:
- State of the art, yet affordable large diaphragm microphone
- Versatile studio workhorse for vocals and instruments
- Extremely flexible: 5 polar patterns, multiple pad and low cut options
- Transformer less circuitry for ultra-transparent sound
- Extremely low self-noise
- Distortion-free even at highest sound pressure levels
Specs:
Key Specs
|
Form Factor |
Large Diaphragm Mic / Stand/Boom Mount |
|
Element Type |
Condenser |
|
Polar Pattern |
Cardioid / Figure-8 / Hyper cardioid / Omnidirectional / Sub cardioid/Wide Cardioid |
|
On-Board Controls |
High-Pass Filter, Pad, Polar Pattern |
|
Frequency Range |
20 Hz to 20 kHz |
|
Maximum SPL |
141 dB SPL (.5% THD) |
|
Power Sources |
Phantom Power |
Microphone
|
Primary Applications |
Studio Recording |
|
Form Factor |
Large Diaphragm Mic / Stand/Boom Mount |
Intended Sound Sources Vocals, Instruments
|
Sound Field |
Mono |
|
Element Type |
Condenser |
|
Polar Pattern |
Cardioid / Figure-8 / Hyper cardioid / Omnidirectional / Sub cardioid/Wide Cardioid |
Performance
|
Pattern Selection |
Switched (Adjustable on Mic) |
|
Orientation |
Side Address |
|
Circuitry |
Solid-State |
Pad -6 dB
-12 dB
|
High-Pass Filter |
40 Hz |
|

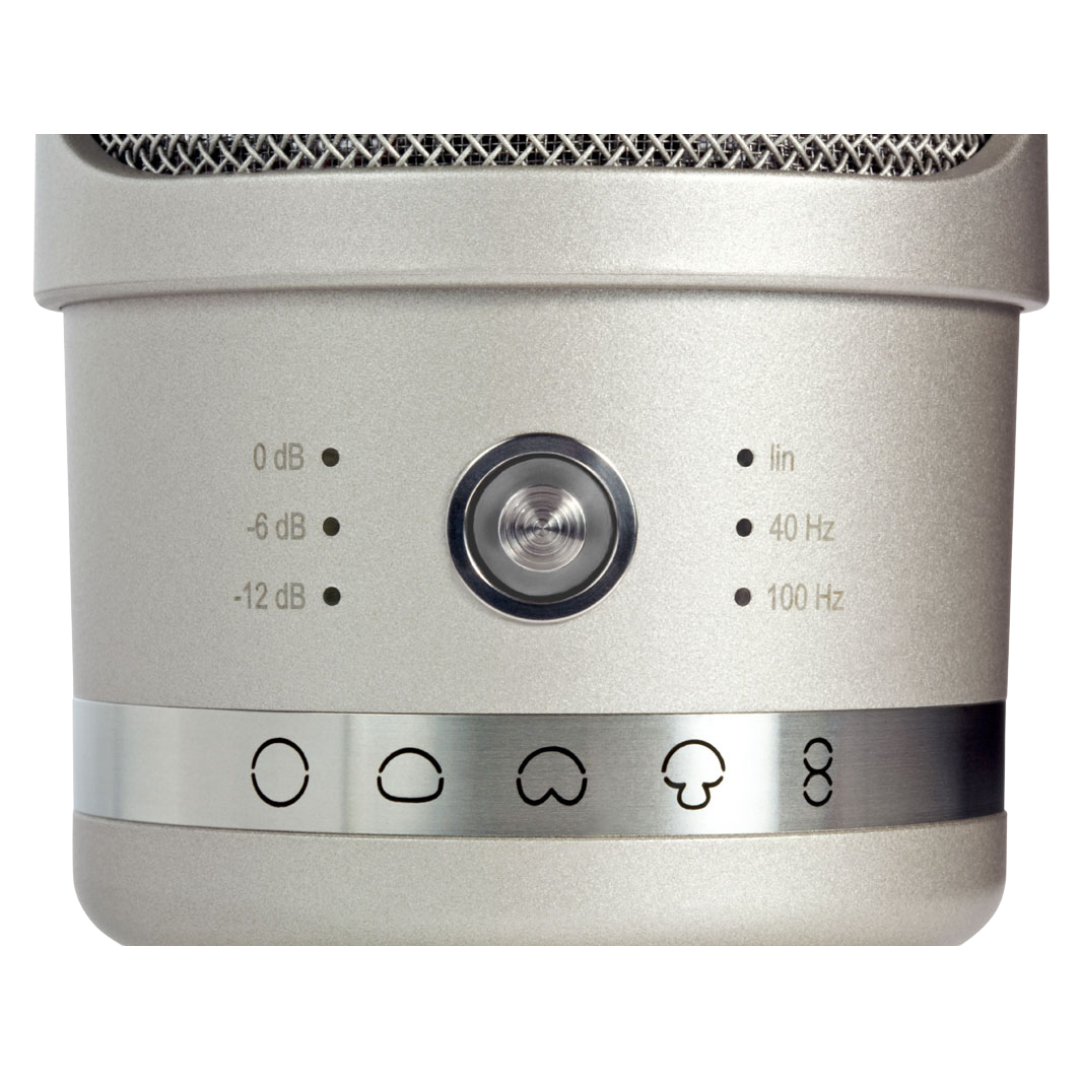

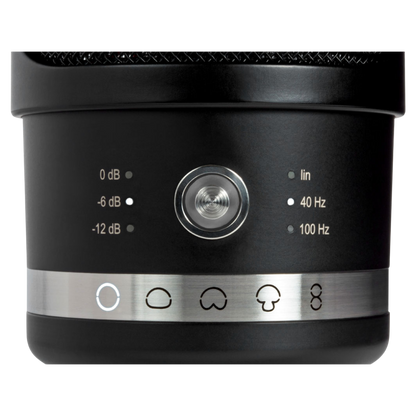

On-Board Controls |
High-Pass Filter, Pad, Polar Pattern |
Performance
|
Frequency Range |
20 Hz to 20 kHz |
|
Maximum SPL |
141 dB SPL (.5% THD) |
|
Impedance |
50 Ohms |
|
Load Impedance |
1000 Ohms (Rated) |
|
Sensitivity |
11 mV/Pa at 1 kHz into 1 Kilohm |
|
Dynamic Range |
131 dB |
|
Signal-to-Noise Ratio |
84 dB A-Weighted |
|
Equivalent Noise Level |
10 dB A-Weighted |
Connectivity
|
Analog Output |
1x XLR 3-Pin Male (on Mic) |
Power
|
Power Sources |
Phantom Power |
|
Operating Voltage |
48 V (Phantom Power) |
Physical
|
Color |
Nickel |
|
Mounting Thread Size |
5/8"-27 Female |
|
Dimensions |
ø: 2.5 x L: 5.7" / ø: 6.4 x L: 14.5 cm |
|
Weight |
15.7 oz / 445 g |
Packaging Info
|
Package Weight |
2.75 lb |
|
Box Dimensions (LxWxH) |
10.4 x 5 x 3.9" |
