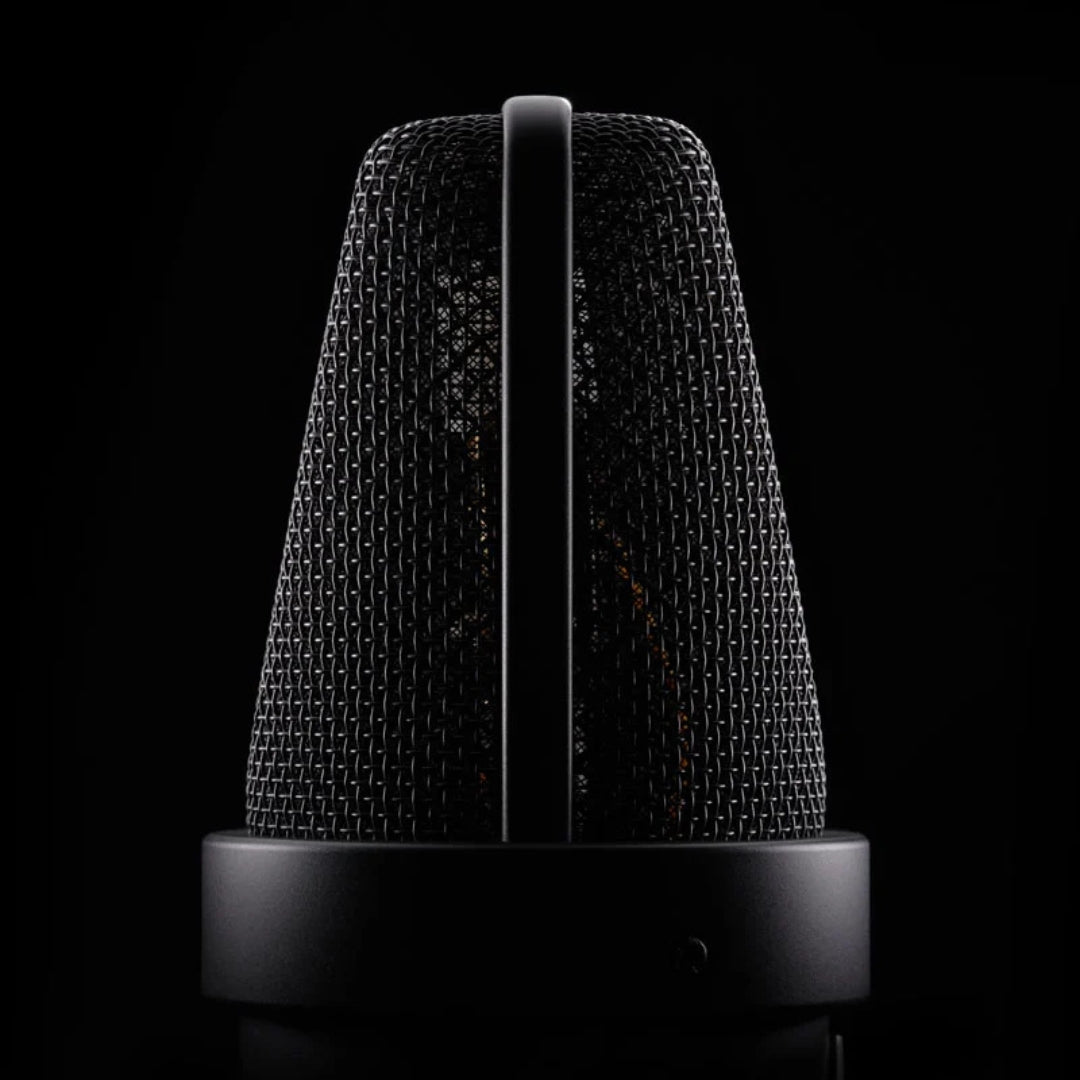

TLM 103
Pairs well with

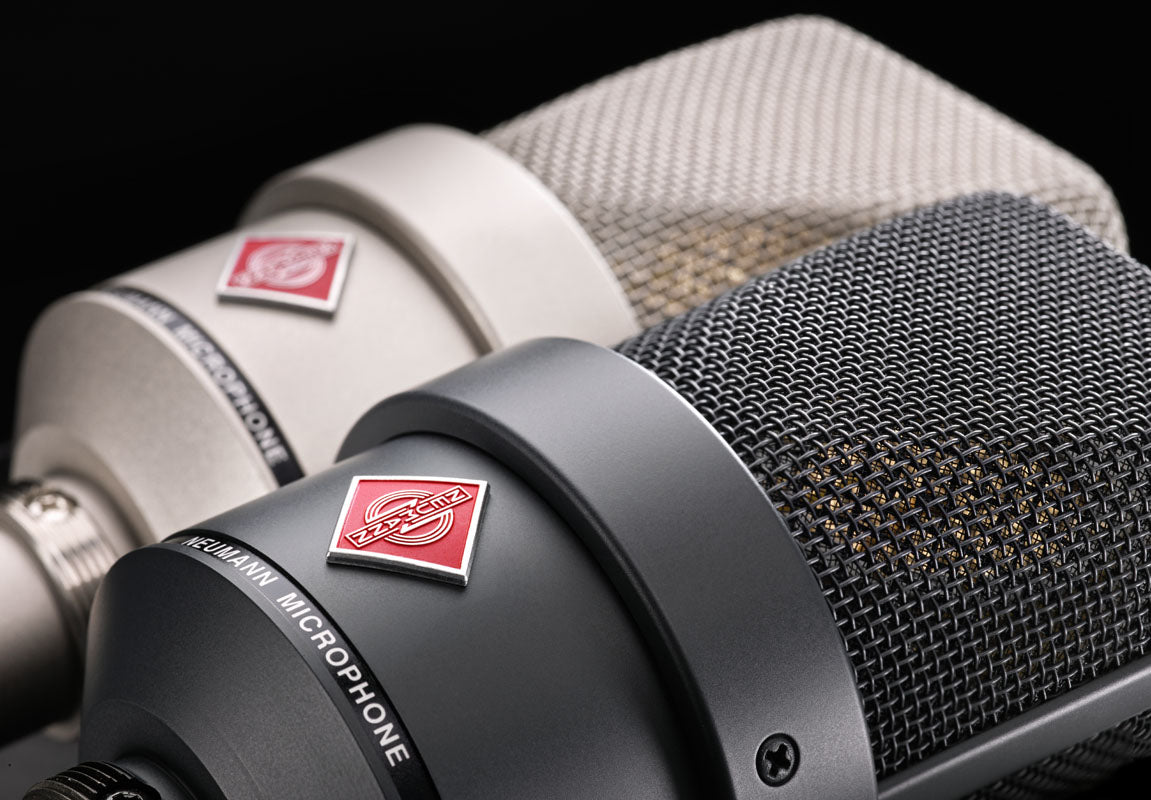

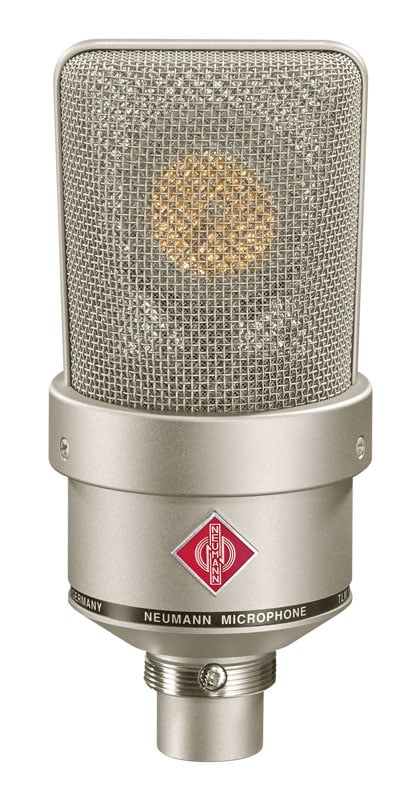

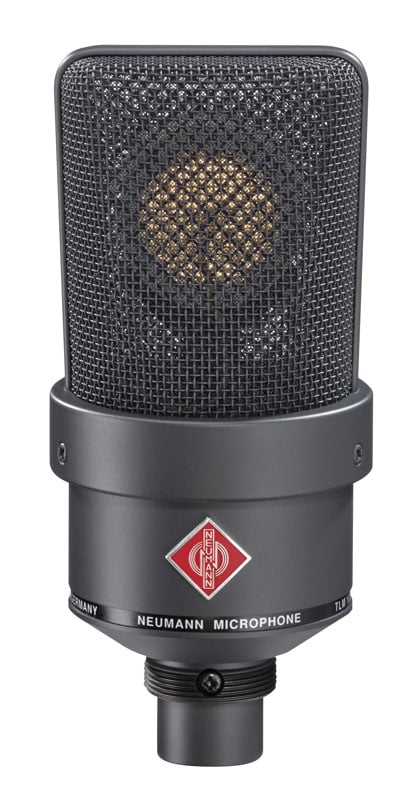

TLM 103
Product details
Description
Features:

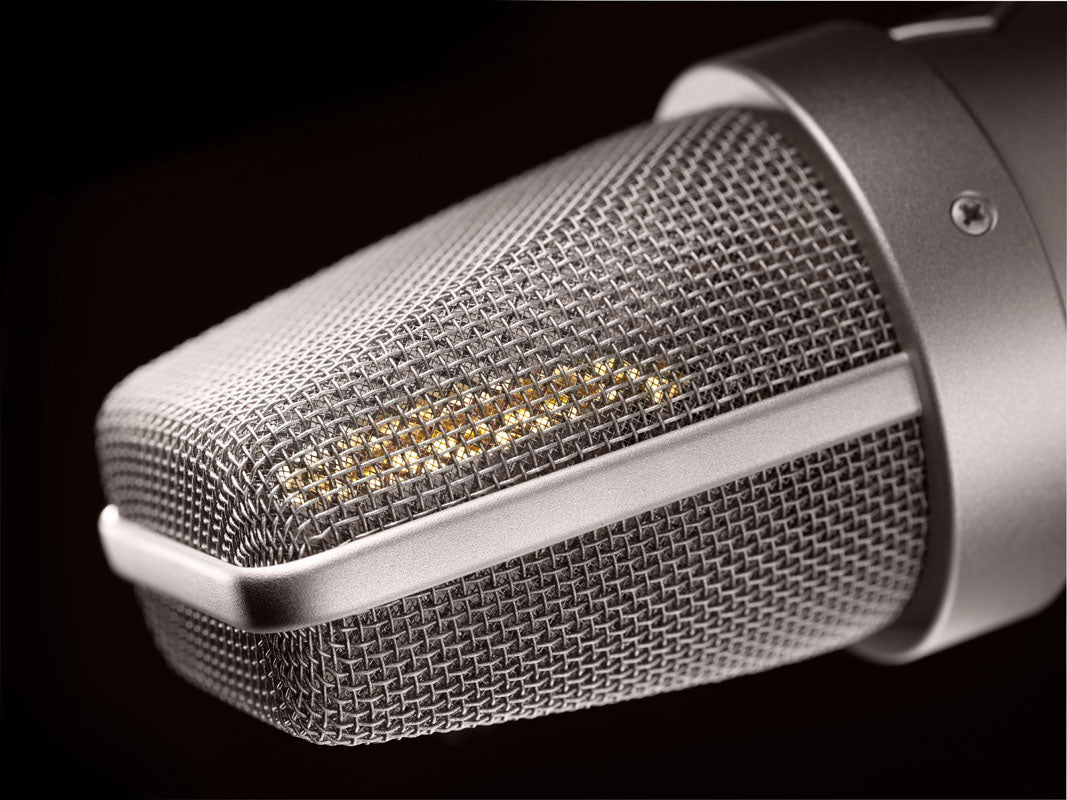

- Capsule design derived from the legendary U 87 A
- Consistent cardioid pattern
- Broad presence boosts for enhanced sound definition
- Extremely low self-noise
Specs:
Key Specs
|
Polar Pattern |
Cardioid |
|
Element Type |
Condenser |
|
Controls |
NO |
|
Frequency Range |
20 Hz to 20 kHz |
|
Maximum SPL |
138 dB (.5% THD) |
|
Power Sources |
Phantom Power |
|
Analog Output |

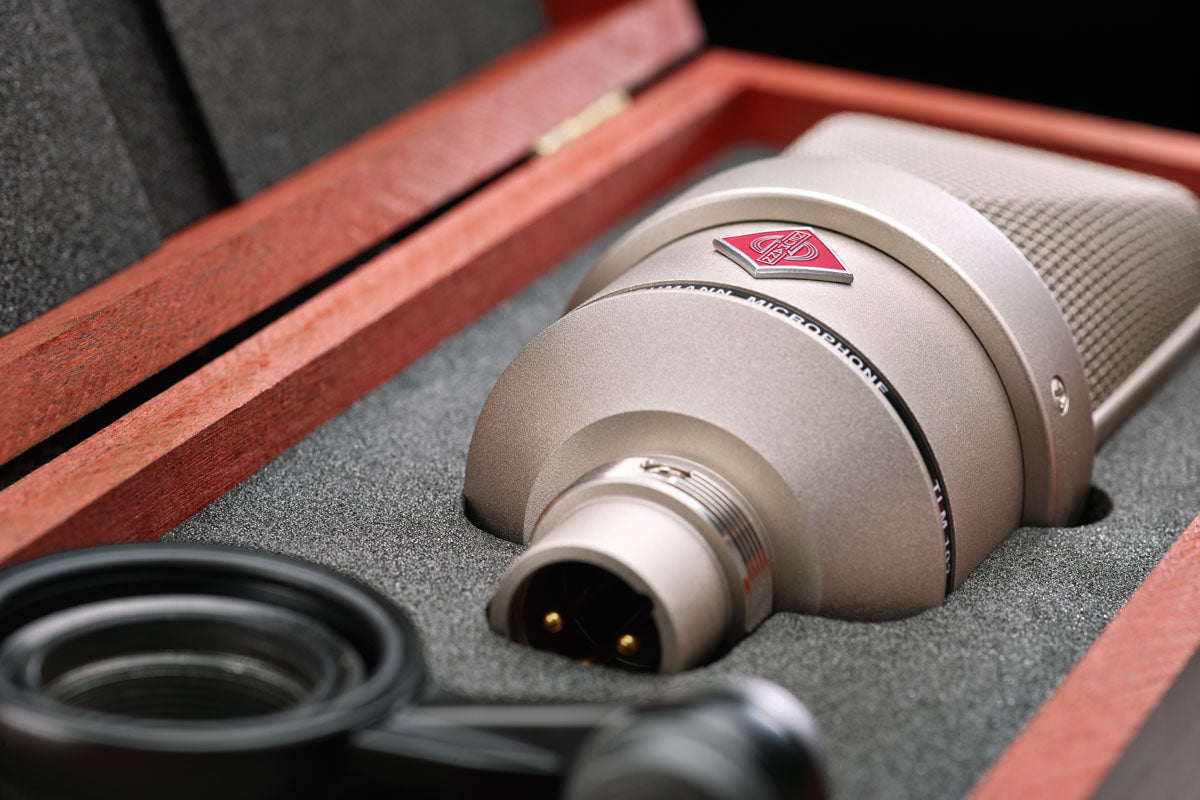

1x XLR 3-Pin Male |
Microphone
|
Polar Pattern |
Cardioid |
| Element Type |
Condenser |
|
Sound Field |
Mono |
|
Orientation |
Side Address |
|
Controls |
No |
|
Pad |
No |
|
Circuitry |
Solid-State |
|
Frequency Range |
20 Hz to 20 kHz |
|
Maximum SPL |
138 dB (.5% THD) |
|
Off-Axis Rejection |
>2 dB at 60° |
|
Sensitivity |
-32.5 dBV (at 1 kHz into 1 Kilohms) |
|
Dynamic Range |
131 dB |
|
Equivalent Noise Level |
7 dB (A-Weighted) 17.5 dB (CCIR) |
Connectivity
|
Analog Output |
1x XLR 3-Pin Male (on Mic) |
Power
|
Power Sources |
Phantom Power |
|
Operating Voltage |
48 V (Phantom Power) |
Physical
| Color | |
| Dimensions | |
| Weight |
Packaging Info
| Package Weight | |
| Box Dimensions (LxWxH) |
