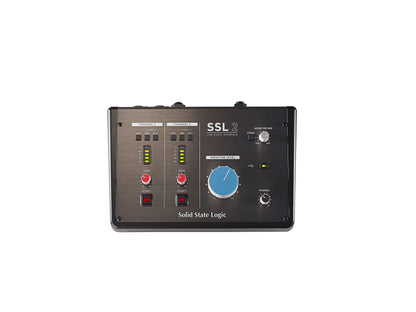

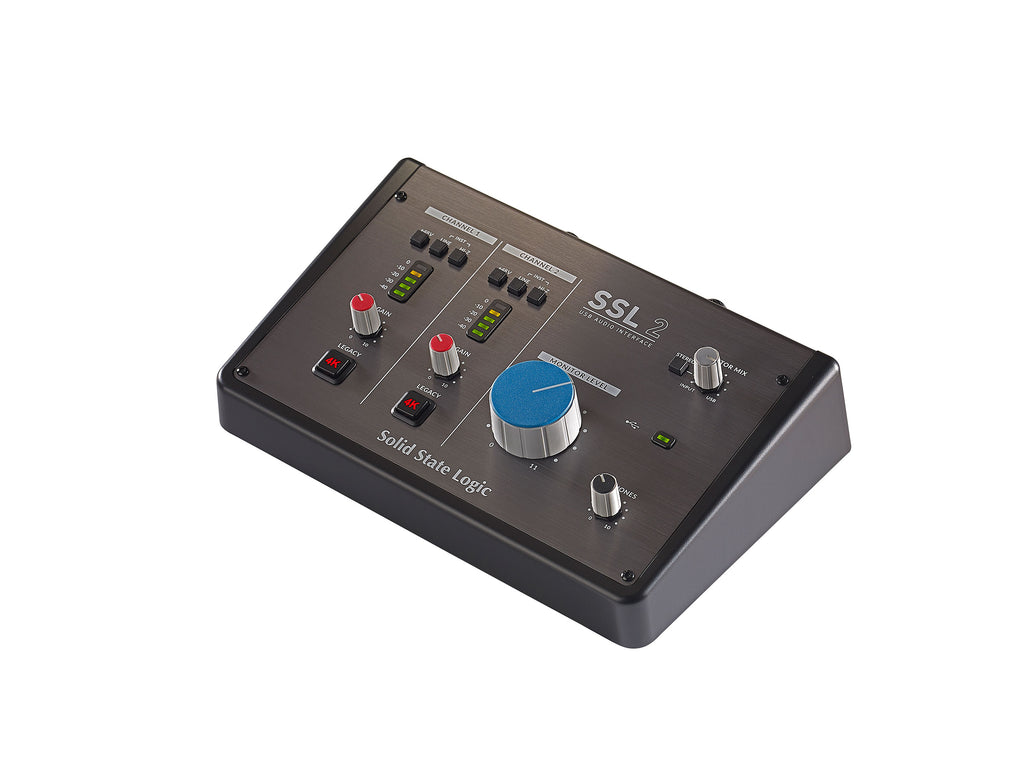

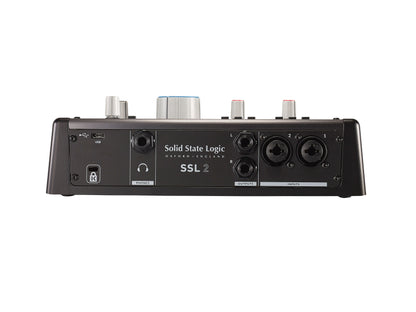

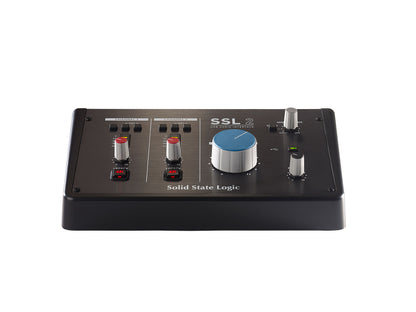

SSL 2

Computer Connectivity

USB 2.0

Form Factor

Desktop

Simultaneous I/O

2 x 2

Number of Preamps

2 x line (mic, instrument)

(-130.5 dBu EIN)

Gain Range: 62 dB

A/D Resolution

Up to 32-bit/192kHz

Analog Inputs

2 x XLR-1/4" combo, 2 x 1/8"

Analog Outputs

2 x 1/4"

Headphones

2 x 1/8"

MIDI I/O

In/Out

USB

1 x USB-C

OS Requirements - Mac

Mac OS 10.11 and above | Class-Compliant, Plug-and-play

OS Requirements - PC

Windows 10, Windows 11 | Install included ASIO/WDM driver

Instrument/Line

Max Instrument Input Level: +15 dBu

Max Line Input Level:  +24 dBu

Monitor Outputs

Dynamic Range: 112 dB​
Max Output Level: + 12.5 dBu​

Headphone Output(s)

Dynamic Range: 111 dB
Max Output: +10 dBu
