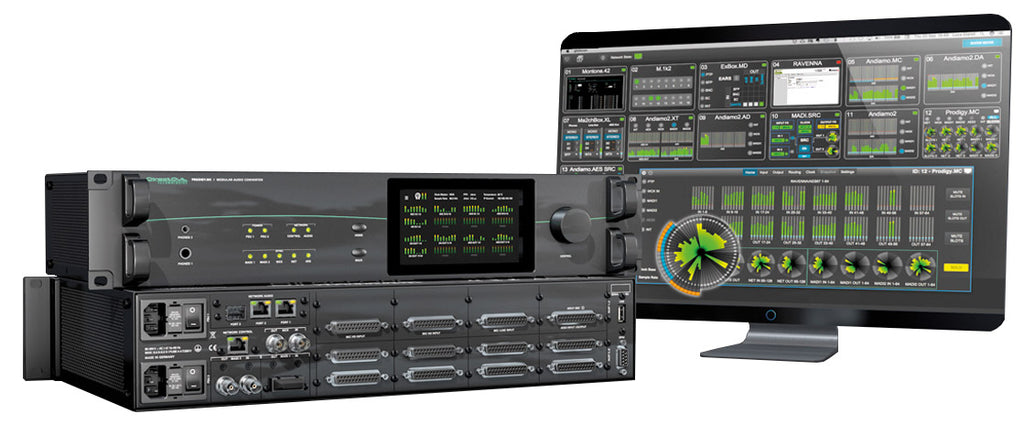

PRODIGY.MC

• Converter Modules

AN8.IO

8 ch line input / output, 2 x DSUB-25, balanced

AN8.I

8 ch line input, 1 x DSUB-25, balanced

AN8.O

8 ch line output, 1 x DSUB-25, balanced

MIC8.HD.I

8 ch mic high definition input, 1 x DSUB-25, balanced

MIC8.HD.IO

8 ch mic high definition input / line output, 2 x DSUB-25, balanced

MIC8.LINE.IO

8 ch mic input / line output, 2 x DSUB-25, balanced

MIC8.LINE.I

8 ch mic input, 1 x DSUB-25, balanced

AES4.IO

4 port AES3 input / output, 1 x DSUB-25 (8 audio channels)

AES4.SRC.I

4 port AES3 input with SRC / output, 1 x DSUB-25 (8 audio channels)

MADI Modules

BNC.IO

64 ch MADI, 1x coaxial BNC input, 1x coaxial BNC output, 75 Ω

SC.IO

64 ch MADI, 1x SC-Socket duplex multi-mode (single mode on request)

SFP.IO

64 ch MADI, 1x SFP cage (matching SFP modules available from DirectOut)
with Sample Rate Converter

MADI2.SRC.IO

128 ch MADI, 2x SFP cage (matching SFP modules available from DirectOut)

MADI2.BNC.SRC.IO

128 ch MADI, 2x coaxial BNC input, 2x coaxial BNC output, 75 Ω

Network Modules

RAV.IO

Audio Network RAVENNA / AES67 (2x RJ45, 1x SFP)

RAV.SRC.IO

Audio Network RAVENNA / AES67 (2x RJ45, 1x SFP)
with Sample Rate Converter

DANTE.IO

Audio Network DANTE (2x RJ45, 1x SFP)

DANTE.SRC.IO

Audio Network DANTE (2x RJ45, 1x SFP)
with Sample Rate Converter

SG.IO

Audio Network SoundGrid (2x RJ45, 1x SFP)

SG.SRC.IO

Audio Network SoundGrid (2x RJ45, 1x SFP)
with Sample Rate Converter

MILAN.IO

Audio Network AVB/MILAN (2x RJ45, 1x SFP)

MILAN.SRC.IO

Audio Network AVB/MILAN (2x RJ45, 1x SFP)
with Sample Rate Converter

Digital

Sample rates:

44.1, 48, 88.2, 96, 176.4, 192 kHz (+/- 12,5%)

MADI formats:

48k / 96k Frame, 56 / 64 channel, S/MUX

Additional Interfaces

Headphone Output #1:

1 x 6.3 mm TRS jack, mono/stereo
Output level: max. +18 dBu
SNR: -115 dB RMS (20 Hz - 20 kHz) / -118 dB(A)
THD+N @ 0 dBFS: -105 dB @ 600 Ω

Headphone Output #2:

1 x 3.5 mm TRS jack, mono/stereo
Output level: max. +12 dBu
SNR: -115 dB RMS (20 Hz - 20 kHz) / -118 dB(A)
THD+N @ 0 dBFS: -105 dB @ 600 Ω

Word Clock I/O:

1 x coaxial BNC (75 Ω termination switchable), AES11 (DARS also supported)

GPIO

2 x GPI (MOSFET switch)
2 x GPO (MOSFET switch)

USB

USB 2.0 for legacy control of ANDIAMO devices

Communication

Remote Software:

globcon software control
integrated web server with UI (HTML, JavaScript)

Control Protocols:

JSON API, SNMP*, OSC, Ember+

Remote Network:

1x RJ45 Gigabit Ethernet

Global

Power supply:

2 x 84 V to 264 V AC / 47 Hz to 63 Hz / safety class 1, phaseredundant

Power Consumption:

20 to 110 W, module dependent

Display:

5.0” Backlight LED LCD
IPS Transmissive
Resolution: 480 x 854 px

Local Control:

1 x Encoder knob with push functionality
2 x Push-Buttons

Dimensions:

Width 19'' (483 mm)
Height 2 RU (89 mm)
Depth 10'' (254 mm)

Weight:

about 10 kg
