Anubis

Features key

Premium audio interface in Neumann quality with intuitive touchscreen control

Class-leading AD/DA converters with enormous dynamic range

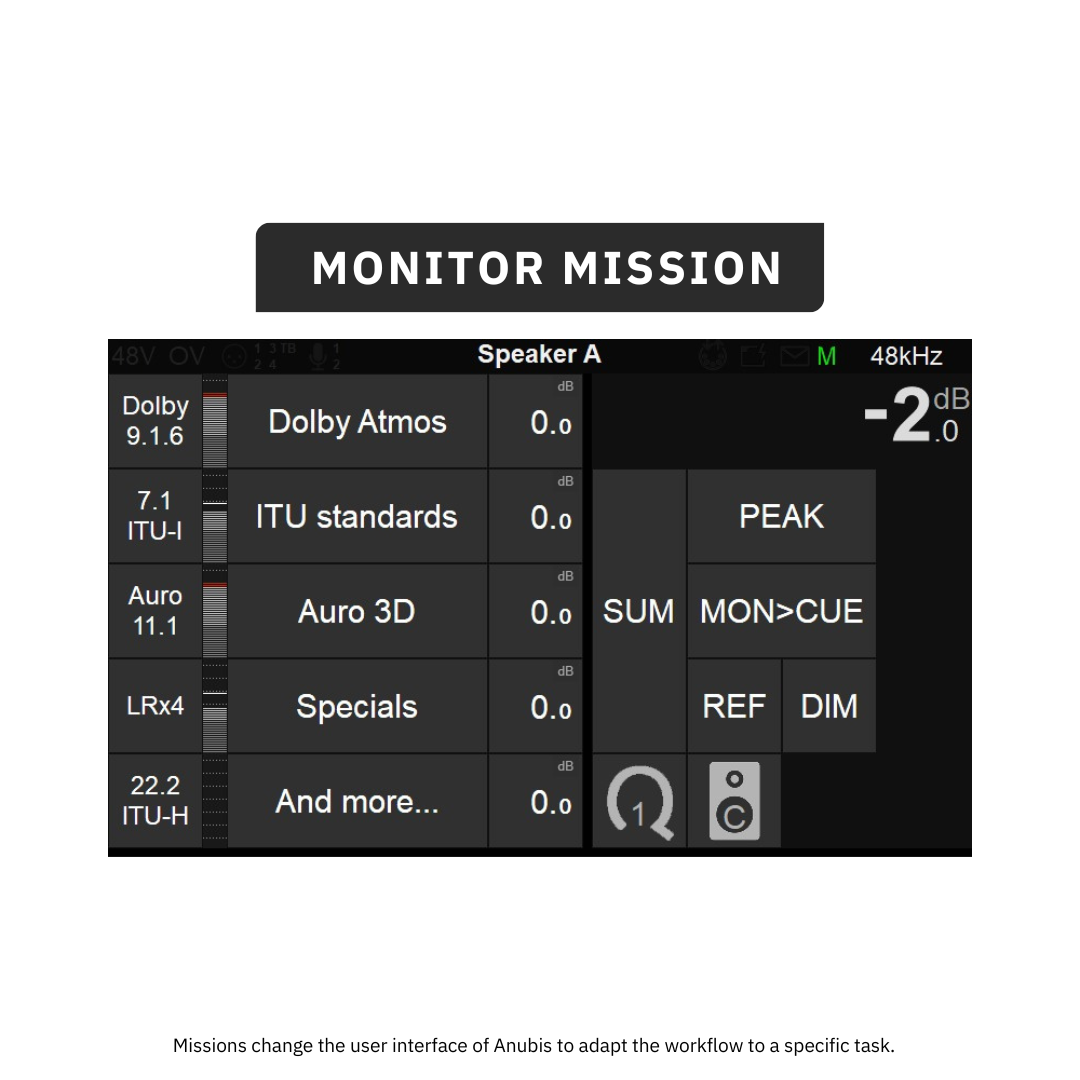

Intuitive touchscreen user interface
DSP processing (EQ, dynamics, reverb)
4 independent mixers with integrated talkback
USB, ADAT and AES67 connectivity

Specification

Mic Inputs 1 -2
Dynamic Range    136 dB-A
Equivalent Input Noise (150 Ohm)    -128 dBu-A
Input Impedance    10 kΩ
Gain Range    12…+78 dB in 0.5 dB steps or 0.1 dB (fine)
Pad    12 dB/24 dB
Max. Input Level    0 /+12/+24 dBu (without Pad/with Pad)
THD + N Preamp + ADC @ 1 kHz, 0 dBFS    < -110 dB (0.0003%)
Line Inputs 1-2
Dynamic Range    138.5 dB-A
Input Impedance    10 kΩ
Gain Range    0…+66 dB
Sensitivity    +24 dBu…-42 dBu
Max. Input Level    +24 dBu
THD + N Preamp + ADC @ 1 kHz, 0 dBFS    < -105 dB (0.0006%)
Instrument/Line Inputs 3 - 4
Dynamic Range    135 dB-A
Input Impedance    2 MΩ (balanced) / 1 MΩ (unbalanced)
Gain Range    0…+66 dB
Sensitivity    +18 dBu … -48 dBu
Max. Input Level    +18 dBu
THD + N Preamp + ADC @ 1 kHz, 0 dBFS    < -112 dB (0.0003%)
Line/Monitor Outputs
Output Impedance    < 70 Ω
THD+N@ 1 kHz, 0 dBFS    < -110 dB (0.0003%)
Dynamic Range    123 dB-A
Max. Output Level    +24 dBu
Headphone Outputs
Output Impedance    0.035 Ω
Dynamic Range    122 dB-A (high) / 117 dB (low)
Max. Output Level    +16 dBu (high) /+8 dBu (low)
AES67/Ravenna    Standard RJ-45 Gigabit-Ethernet-Anschluss
Expansion Connectivity    "ADAT/S/PDIF optical I/O, MIDI I/O via 1/4” jack, (DIN5 adapter set available from Neumann: Cat. No.700261)"
Computer Interface    USB-C, 2.0 High Speed (480 MB/s) or higher
Power Consumption    <25 W
Product Dimensions    200 x 128 x 40mm
