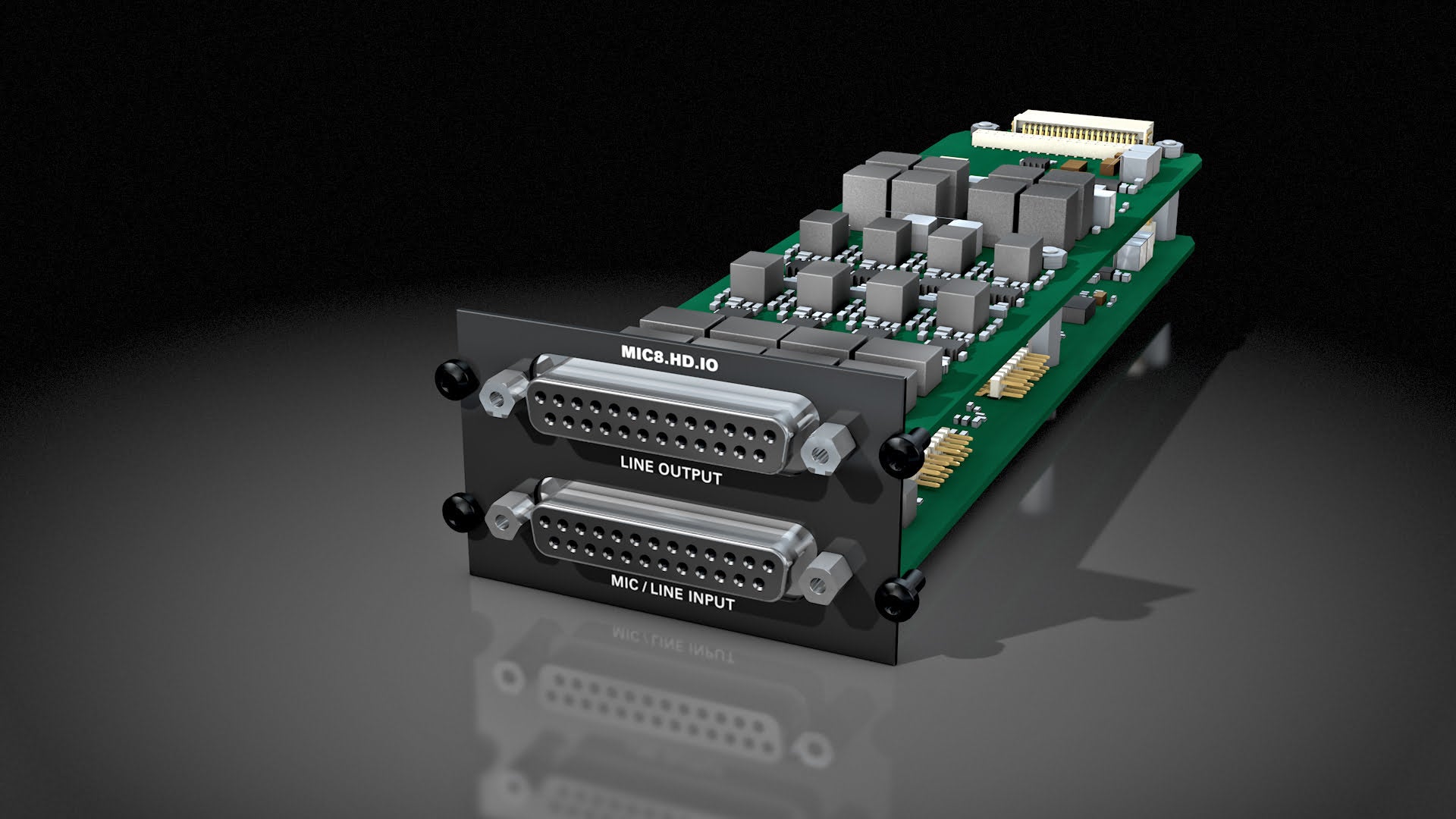

MIC8.HD.IO

Features:

·       MIC8.HD.IO is a converter module for is a converter module for PRODIGY.MC, PRODIGY.MP and MAVEN.A.

·       Eight analog audio input and output channels are interfaced via two DSUB-25 connectors.

·       The inputs are balanced and cover signal ranges from mic to line level.

·       The outputs are balanced, and the reference level can be adjusted to either +15 / +18 or +24 dBu via jumper - individually per channel.

·       The MIC8.HD.IO is best suited for superior quality recordings and broadcasting.

·       The MIC8.LINE.IO applies perfect for live sound or installation scenarios where usual high quality is required.

Spec

·       8 channels mic input (High Definition)/line output

A/D

·       PAD -30 dB, phantom power (+48 V, switchable)

·       Input sensitivity: -56 dBu to +24 dBu

·       EIN: -128 dBu,

·       THD @ -1 dBFS: -113 dB Frequency response: -0.15 dB (10 Hz) / -0.15 dB (20 kHz)

D/A

·       reference levels +15 / +18 / +24 dBu via jumper

·       SNR: -116,8 dB RMS (20 Hz - 20 kHz) / -119,5 dB(A)

·       THD @ -1 dBFS: -109 dB

·       Frequency response: -0,5 dB (10 Hz) / -0,15 dB (20 kHz

·       2 x DSUB-25 connector (input/output) *, according to AES59

·       suitable cabling to connect with BREAKOUT is available from DirectOut GmbH
