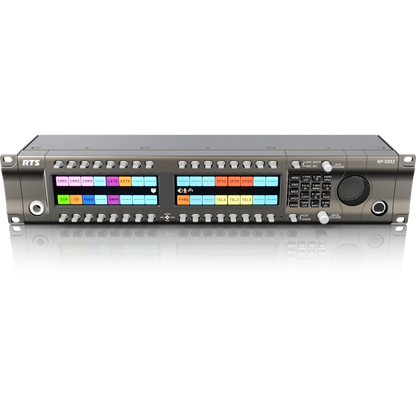

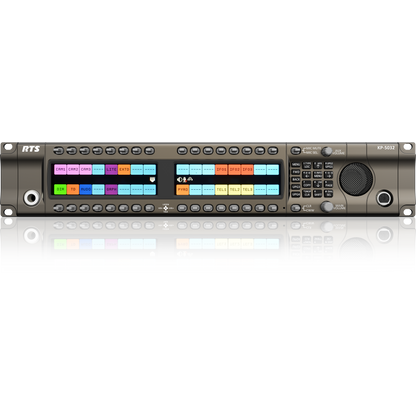

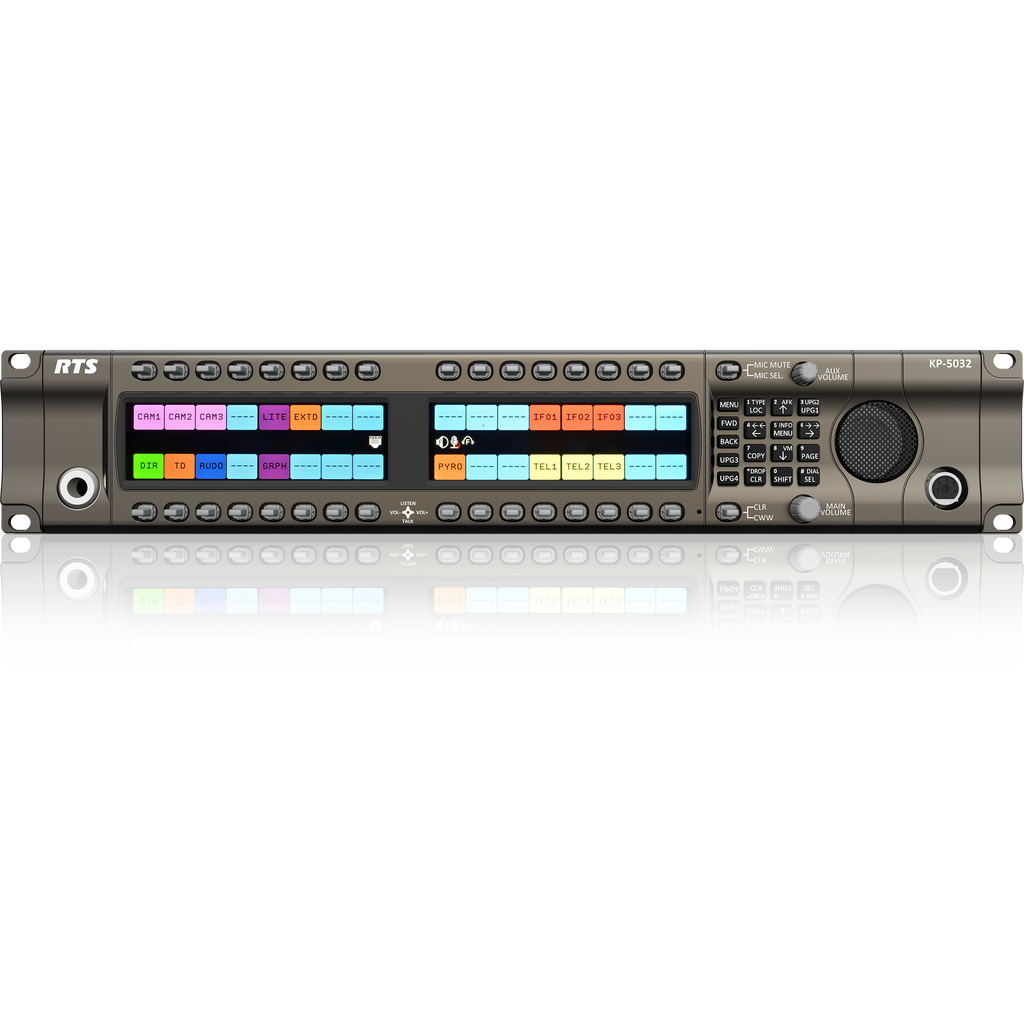

KP-5032

LCD Display

Active Area

120.10mm (wide) x 35.86mm (high)

Dot Resolution

576 x 172 pixels

Color Resolution

16-bit (64K)RGB color

View Angle

80 degrees (typical; all directions)

Power Supply

Type

External DC

AC Input

100–240VAC 50/60Hz

General Purpose Inputs and Outputs

Outputs

Type (relays)

SPDT

Contact Rating

1AMP @ 30VDC

Inputs

Type

Optically Coupled

Input Voltage

5-18 VDC on A+
* A+ is internally pulled to 5VDC. Connect K- to to activate.

Inputs

Matrix

Type

Balanced

Typical Input Level

+8dBu

Typical Input Impedance

>10kΩ

Maximum Input Level

+20dBu

Supported Bandwidth

100Hz to 20KHz

Aux 1 and Aux 2

Type

Balanced

Typical Input Level

+8dBu

Typical Input Impedance

>10 k Ω

Front Panel Mic

Type

Electret

Typical Input Level

-42dBu

Typical Input Impedance

1kΩ

Maximum Input Level

-25dBu

Rear Panel Mic

Type

Electret

Typical Input Level

-42dBu

Typical Input Impedance

1kΩ

Maximum Input Level

-25dBu

Front and Rear Headset Mic - Electret

Typical Input Level

-42dBu

Typical Input Impedance

1kΩ

Maximum Input Level

-25dBu

Front and Rear Headset Mic - Dynamic

Typical Input Level

-50dBu

Typical Input Impedance

600Ω

Maximum Input Level

-25dBu

Outputs

Matrix

Type

Balanced

Typical Output Level

+8dBu

THD+N%

<0.20%

Typical Output Impedance

600Ω

Maximum Output Level

+20dBu

Frequency Response

100Hz to 20KHz

MIC/LINE Out

Type

Balanced

Typical Output Level

+8dBu

THD+N%

<0.20%

Typical Output Impedance

600Ω

Maximum Output Level

+20dBu

Frequency Response

100Hz to 20KHz

Headset - Front, Rear, Left, Right

Maximum

Output Power

125mW for 32Ω load

Earphone Impedance

16Ω and above

THD+N%

<0.20%

Frequency Response

100Hz to 20KHz

Speaker - Rear

Maximum Output Power

5W for 8W load

Speaker Impedance

4Ω and 8Ω

THD+N%

<0.20%

Frequency Response

100Hz to 20KHz

Speaker - Front

SPL

84dBSPL for 1kHz sine wave @ 1 meter

Digital

OMNEO Channels

Typical OMNEO Latency

1ms

Frequency Response

20Hz - 20KHz

Environmental

Dimensions

17.39” W(without rack ears) x 3.46” H x 3.88” D
(441.82mm x 87.96mm x 98.5mm
[111.11mm including volume knobs and lever keys])

Weight

KP-5032

4.89lb (2.22kg)

Power Supply

0.53lb (.24kg)

Power Supply

Mounting Bracket

0.30lbs (.14kg)

Temperature

Operating

0° C to 55°C (32°F to 131°F)

Storage

-20°C to 70°C (-4°F to 158°F)

Power Consumption

Nominal

13 Watts

Maximum

18 Watts

Maximum Volt Amp

48 VA

Certification

CE Compliance
UL Certified
