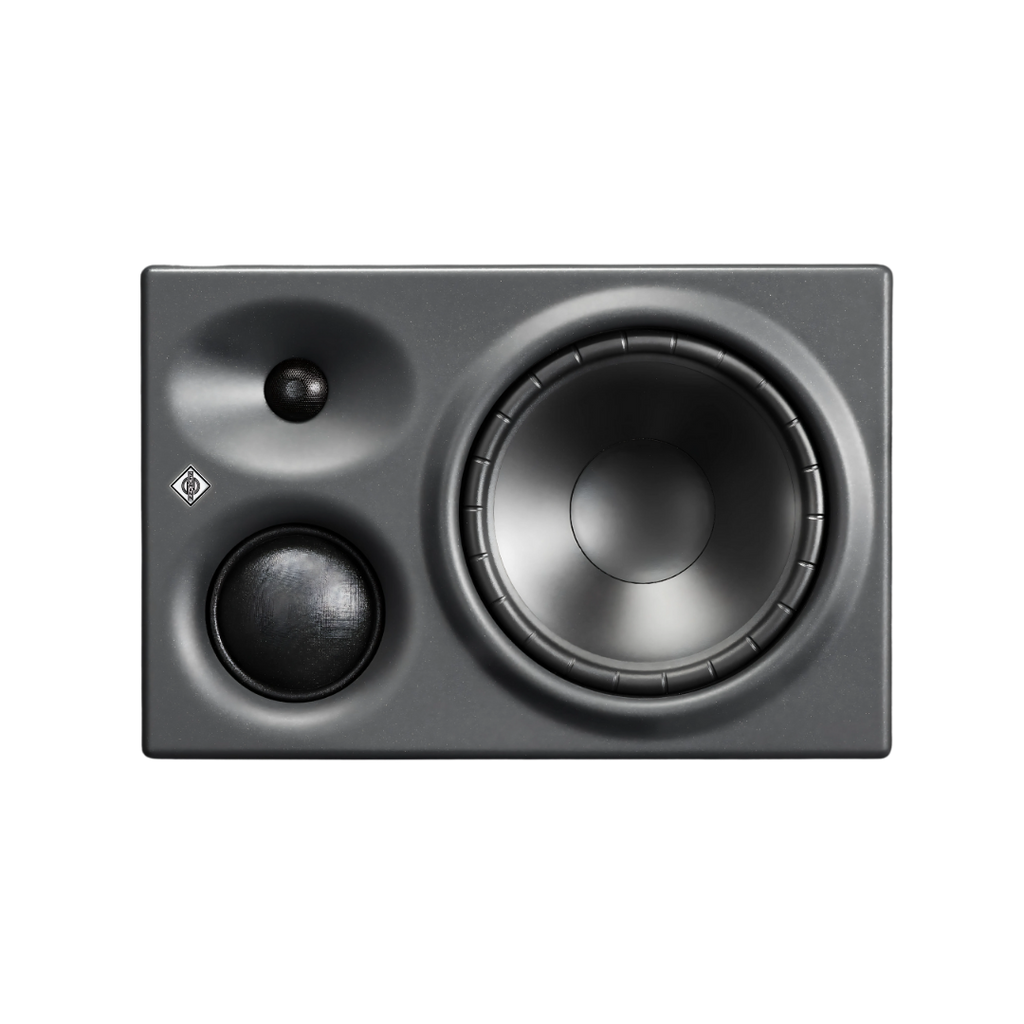

KH 310 A L G / A R G

Name: KH 310 A L G / A R G
Brand: NEUMANN
Availability: InStock

Product variants

Pairs well with

Product details

Description

Features

· High-resolution tri-amplified near-field monitor, optimized for midrange and a dry bass sound.

Quickest transient response of its class
Tremendous bass capability down to 34 Hz
Higher precision in the midrange through a specially designed driver
As a stereo system with KH 750 DSP and optional tools, controllable and align able to the room

Specs

Monitor Type & Configuration	Active 3-Way

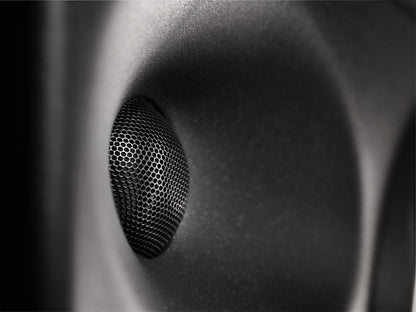

Tweeter	25 mm (1") with protecting black metal grille
Woofer	210 mm (8 1/4") magnetically sheilded
Midrange	76.2 mm ( 3’’)
Audio I/O	1 x XLR 3-Pin Balanced Input (13 Kilohms)
Network I/O	No

Number of Included Monitors	Single Monitor
Enclosure	Sealed, Shielded

Drivers

Tweeter	1x 1" / 25.4 mm Dome
Woofer	1x 5.25" / 13.33 cm Composite Cone
Midrange	76.2 mm (3”) Cone
Amplifiers	HF: 1 x 70 W RMS / 90 W Peak Class-AB MF: 1 x 70 W RMS / 90 W Peak Class-AB LF: 1 x 150 W RMS / 210 W Peak Class-AB

Performance

Frequency Response	36 Hz to 20 kHz ± 2 dB
Frequency Range	34 Hz to 21 kHz ± 3 dB (-3 dB)
Maximum Sound Pressure Level (SPL)	116.3 dB
Protections and limiting	Excursion Limiter, Soft Limiter, and Thermal Limiting

Signal Processing

EQ

1 x LF Shelf: -7.5 to 0 dB (2.5 dB Increments)

1 x Low-Mid Notch/Peak: -4.5 to 0 dB (1.5 dB Increments)

1 x HF Shelf: -2 to +1 dB (1 dB Increments)

Crossover Frequency

Low-Pass: 650 Hz, 24 dB/Octave Slope

High-Pass: 2 kHz, 24 dB/Octave Slope

Crossover Type

Active

Connectivity

Audio I/O	1 x XLR 3-Pin Balanced Input (13 Kilohms)
Network I/O	No
USB	No
Wireless	No

Power

Packaging Info

Package Weight	16.8 kg (37 lbs 1 oz)
Box Dimensions (L x W x H)	360 x 380 x 590 mm (14 1/8" x 15" x 23 1/4")
