Kh-120 II
Pairs well with
Kh-120 II
Product details
Description
Features

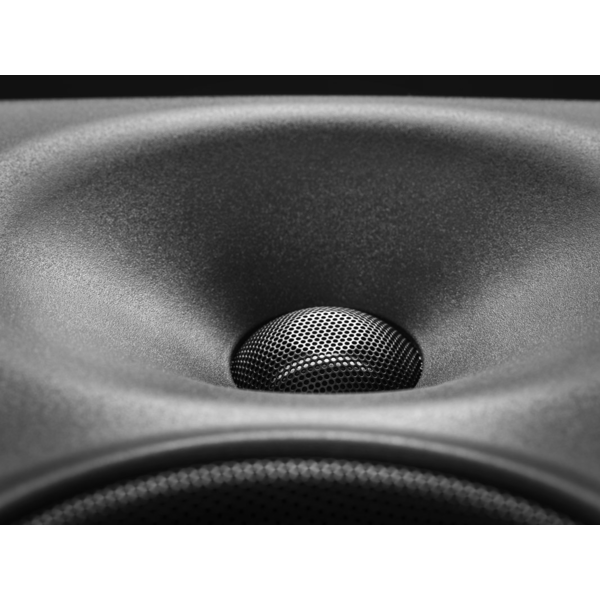

- High-precision drivers, Mathematically Modelled Dispersion™ (MMD™) waveguide
- Linear frequency response 44 Hz … 21 kHz (±3 dB)
- Linear phase response 120 Hz … 16 kHz (±45°) with latency <2.6 ms
- DSP inside allows for room adaptive alignment via Neumann’s MA 1
- Razor sharp imaging due to extremely low tolerances (±0.5 dB)
- May be combined with other KH line speakers in immersive or surround setups
Specs
|
Monitor Type & Configuration |
Active 2-Way |
|
Tweeter |
1x 1" / 25.4 mm Dome |
|
Woofer |
1x 5.25" / 13.33 cm Composite Cone |
|
Audio I/O |
1x Combo XLR-1/4" TRS Balanced Input |
|
Network I/O |
1x RJ45 Ethernet |
|
Number of Included Monitors |
Single Monitor |
|
Enclosure |
Bass-Reflex/Ported, Shielded |
Drivers
|
Tweeter |
1x 1" / 25.4 mm Dome |
|
Woofer |
1x 5.25" / 13.33 cm Composite Cone |
|
Amplifiers |
LF: 1 x 50 W / 80 W Peak |
Performance
|
Frequency Response |
44 Hz to 21 kHz ± 3 dB |
|
Maximum Sound Pressure Level (SPL) |
111 dB |
|
Protections and Limiting |
Excursion Limiter, Peak Limiter, Soft Limiter, Thermal Limiting |
Signal Processing
|
EQ |
1x HF Shelf |
|
Crossover Frequency |
2 kHz, 24 dB/Octave Slope |
|
Crossover Type |
Active |
Connectivity
|
Audio I/O |
1x Combo XLR-1/4" TRS Balanced Input |
|
Network I/O |
1x RJ45 Ethernet |
|
USB |
No |
|
Wireless |
No |
|
Mobile App Compatible |
No |
Power
|
AC Input Power |
100 to 240 VAC, 50/60 Hz |
|
Color |
Anthracite Gray |
|
Enclosure Material |
MDF |
|
Mounting Points |
2x M6 (Rear Panel) |
|
Dimensions (W x H x D) |
10.6 x 16.6 x 15" / 269.2 x 421.6 x 381 mm |
|
Weight |
14.2 lb / 6.4 kg |
Packaging Info
|
Package Weight |
14.15 lb |
|
Box Dimensions (LxWxH) |
16.5 x 14.9 x 10.5" |
