EXBOX.MD

FEA

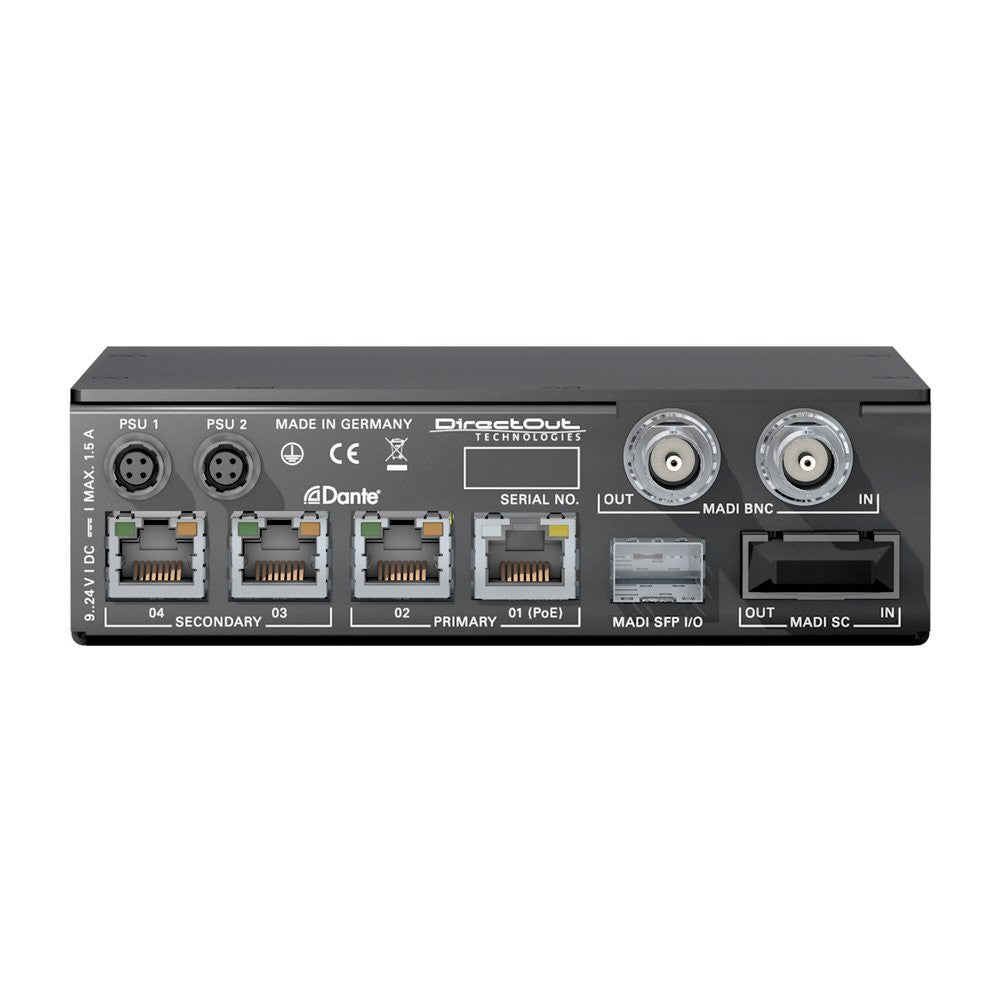

Interfaces

MADI ports (I/O):

1 x coaxial BNC, 75Ω
1 x optical SC-Socket multi-mode
1 x SFP (empty cage without transceiver)*

Network:

3 x RJ45 Socket (1 Gbit/s)
1 x RJ45 Socket (1 Gbit/s, PoE)

Digital

Sample rates:

44.1, 48, 88.2, 96, 176.4, 192 kHz (+/- 12,5%)

MADI formats:

48k / 96k Frame, 56 / 64 channel, S/MUX

Network Audio

Network-Layer:

3

Number of streams:

32

Number of channels (I/O):

64 (@1 FS), 32 (@2 FS), 16 (@4 FS)

Standard:

Dante, AES67

Sync

Network:

IEEE 1588 v1

Signal Processing

Sample Rate Conversion:

FastSRC™ @ Dante I/O

Communication

Remote Software:

Dante Controller, globcon

Remote Methods:

Network

Global

Power Supply:

external, 2 x Hirose (9 - 24V)*, 1 x PoE (IEEE 802.3af)

Dimensions:

Width 140 mm
Height 42 mm
Depth 140 mm

Weight:

about 1 kg

Accessory

SFP modules (LC single-mode or multi-mode)
BOXMOUNT.XL for 19'' rack mount

Device variants

Single-mode:

MADI port: SC-Socket single-mode

Dual PSU

optional available

Notes

* 1 x power supply included
