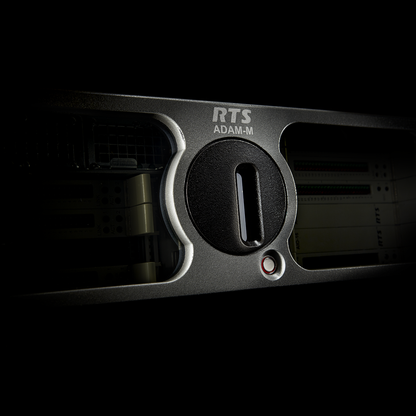

ADAM
Pairs well with
ADAM
Product details
Description
Features
- 8 GPIO's Standard per Frame
- Compatible with most current & legacy RTS digital matrix intercom keypanels & accessories
- Dual-Purpose ports support both keypanel & four-Wire audio
- Supports fully redundant power supplies & controllers
- Individual cross-point level controls
- Integrated support for RTS intelligent trunking
- Multi-level IFB, ISO, partylines, groups & GPI's all standard
- Non-Volatile configuration & crosspoint memory
- RealTime online configuration & monitoring
- RTS UPL (User-Programmable Language) for custom system configurations via pull-down menus
- Supports 16 to 448 users per system based on 3 RU frame(s)
- Supports custom cards for widely used industry interface
- Widest variety of interface cards in the industry
- Widest variety of wiring options in the industry
Specs
|
Max ports, expanded system |
512 (Full OMNEO1) |
|
Port Capacity: Single Frame |
128 |
|
Takes expansion cards |
Yes |
|
Rack Units |
3 |
|
Redundant Power Supplies |
Yes |
|
Redundant Controllers |
Yes |
|
Bus Expansion |
Yes |
|
AC Input |
90-264VAC, 50/60Hz |
|
Link Method |
Single Mode Fiber or Multi Mode Fiber |
|
Cable Length, Single mode |
40 km (TBX) |
|
Cable Length, Multi mode |
550m (TBX) |
|
Front-panel display |
No |
|
Display Type |
NA |
|
Audio Bits |
24 |
|

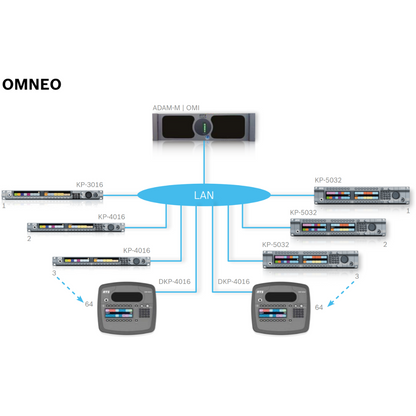

OMNEO Audio |
Yes |
|
Trunking |
Yes |
|
Matrix PC Connection |
Ethernet Serial |
|
Field-upgradeable firmware |
Yes |
|
Integrated Party-Line Interface |
No |
|
General Purpose Outputs |
External GPIO-16 |
|
General Purpose Inputs |
External GPIO-16 |
|
Crosstalk |
< -85dB between adjacent channels |
|
Operating Temperature |
0°C to 50°C°C |
|
Non-Destructive Download |
Yes |
|
Input Impedance |
22KΩ |
|
Remote Configuration |
Yes |
|
Impedance |
600 |
|
Relays |
External GPIO-16 |
|
THD+Noise |
at 21dBu, 1kHz (unweighted), 0.01% |
|
Ethernet Port |
Yes |
|
Regulatory Approval |
UL, CSA, CE, VDE, FCC, PSE, REACH, RoHS, WEEE, CCC, KC, ACMA C-Tick, China RoHS, and IECEE CB Scheme |
|
Storage Temperature |
-40° C to 70°°C |
|
Storage Humidity |
95 |
|
VOX on Input |
Yes |
|
Operating Humidity |
95 |
|
AES Audio |
No |
|
Intuitive User Interface |
Yes |
|
Frequency Response |
15 Hz to 20 KHz +/- 1dB |
|
Audio Levels |
+8dBu Nominal, +20dBu Max |
