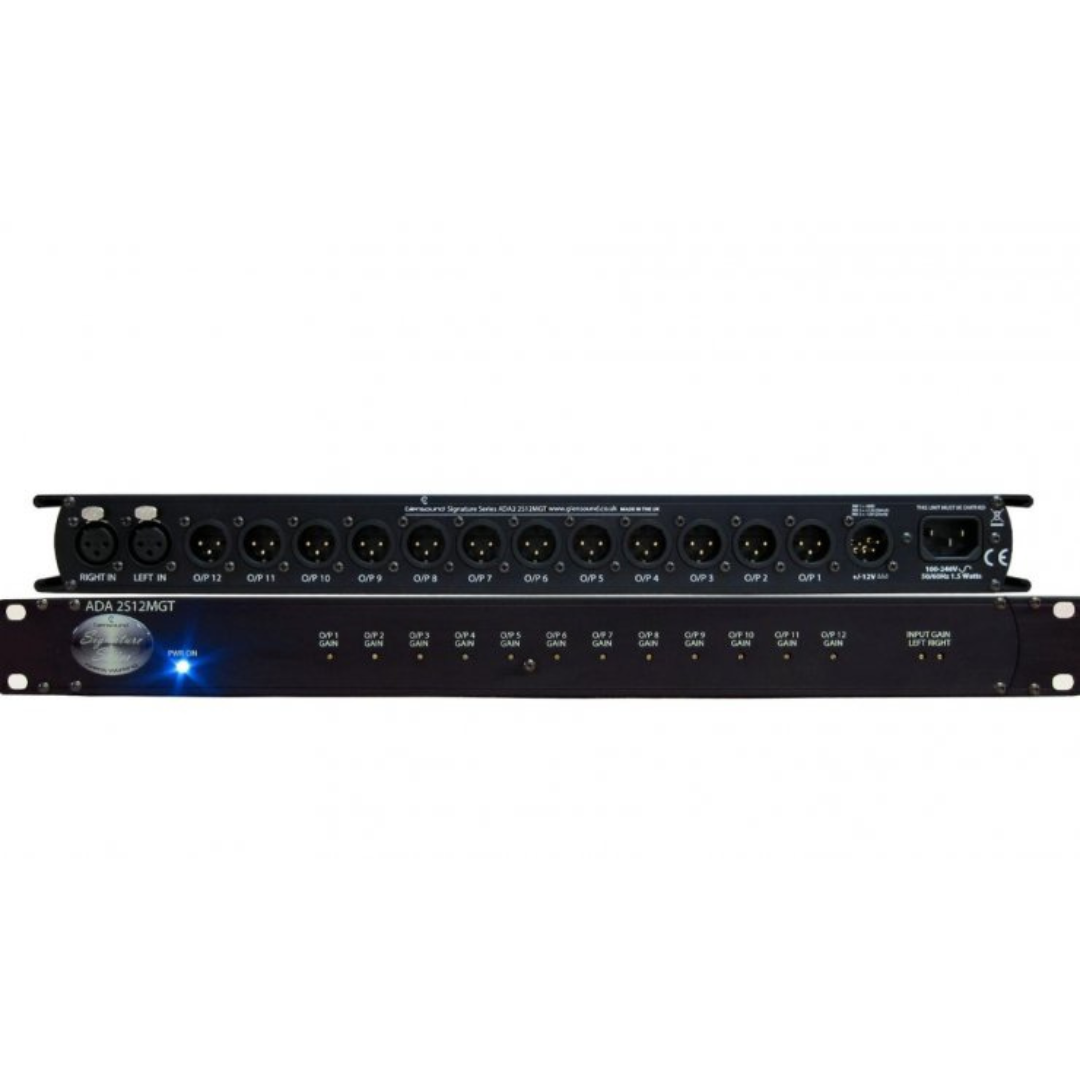

Signature ADA 2S12MGT

Features:

• 1 x stereo input to 12 x mono outputs

• 12 x output gain adjusts

• Input gain adjusts

• Transformer balanced inputs & outputs

• Inputs can accept balanced and unbalanced connections

• Redundant power connection via PS1 Power Station

• Front or rear mounting

• Includes rack ears

  AUDIO:-
  Frequency Response: <+/-1dB 20Hz to 24kHz
  Input Impedance:  >30k Ohm
  Common Mode Rejection: > -67dB @ 20kHz, > -112dB @ 1kHz, >-100dB @ 50Hz
  Maximum Input Level: >+28dB
  Distortion (THD): 0.003% @ 10kHz. 0.005% @ 1kHz, 0.06% @ 100Hz Reference to +8dBu output
  Input Type:  Transformer balanced (can be wired Unbalanced) on Neutrik 3 pin XLR socket
  Input Gain Range:  -21dB to +6dB
  Output Gain Range: -15dB to +10dB
  Output Impedance:  =Output Type:  Transformer balanced (can be wired unbalanced) on Neutrik 3 pin XLR plug
  Maximum Output Level:  +24dBu
  Noise:  -81dB @ line up unweighted RMS (22Hz to 22kHz)

  POWER

  Mains Input:  Filtered IEC, 100 to 240VAC 47 - 63Hz
  Internal Mains Fuse:  20mm 1A Anti Surge
  DC Input:  4 Pin Neutrik XLR plug +/- 12V
  DC Consumption:  +12V 30mA, -12V 24mA
  AC Consumption: 1.5 Watts @ 230VAC

  PHYSICAL

  Size:  445 x 123 x 44mm (LxDxH) no rack ears, 482mm 19” (1RU) with rack ears
  Weight:  1.75kg
  Shipping Weight: 3.5kg
  Shipping Carton:  Rugged export quality cardboard carton 610 x 420 x 130mm LxDxH
  Mechanics:  All aluminium construction, anodised and laser etched
